Quick answer: A "large" commercial dehumidifier is chosen from the moisture load at the space's real condition, not from floor area or the biggest number in a catalogue. Check four things together: capacity at your inlet condition (ratings at 30 °C / 80 % RH overstate what a unit removes at 20 °C / 50 %), airflow and distribution (dry air has to reach every zone), power and drainage (three-phase supply, large condensate volumes) and site access (weight, lifting, service space). In long or divided spaces, several distributed units often outperform one oversized unit and add redundancy.
Quick answer
- Load first: infiltration, doors, wet processes, people, products.
- Capacity at your condition, not the brochure condition.
- Airflow must cover the space; consider several units for long or divided spaces.
What "large" means on a project
| Constraint | Typical question |
|---|---|
| Water removal | Hundreds of litres per day at the operating condition? |
| Airflow | Thousands of m³/h needed to reach all zones? |
| Distribution | Long throw, ducts, divided rooms? |
| Power | Three-phase, kW available, protection |
| Drainage | Hundreds of litres a day to a drain |
| Weight and access | Lifting path, floor/ceiling load, service space |
| Duty | Continuous, seasonal, redundancy needed? |
Start with the moisture load
| Source | Input |
|---|---|
| Infiltration and doors | Air volume entering per hour; outdoor design g/kg |
| Ventilation | Fresh-air rate |
| Wet products, washdown, processes | kg/h evaporated |
| People | Number and activity |
| Crops (greenhouses) | Transpiration |
See commercial dehumidifier sizing and the specifications and project data.
Worked example (illustrative): a warehouse with dock doors
- Target: 22 °C, 50 % RH (about 8.2 g/kg).
- Humid-season outdoor air: 30 °C, 80 % RH (about 21.6 g/kg).
- Infiltration through dock doors and leaks: about 4,000 m³/h at peak.
- Load: 4,000 × 1.16 kg/m³ × (21.6 − 8.2) g/kg ≈ 62 kg/h ≈ 1,490 L/day at peak.
At 22 °C / 50 % RH inlet, a refrigerant dehumidifier removes much less than its rating at 30 °C / 80 % RH. Several units with a combined rating of about 1,500 L/day would fall short. Ask for capacity at 22 °C / 50 % from the performance curve, and size the count from that. Reducing door-open time or adding dock seals can cut the load more cheaply than adding units.
One large unit or several?
| One large unit | Several distributed units | |
|---|---|---|
| Coverage | Needs ducts or long throw | Each unit covers a zone |
| Redundancy | Single point of failure | Partial capacity if one fails |
| Control | One sensor and setpoint | Zone control possible |
| Installation | One power point and drain, heavy lift | More points, lighter units |
| Best for | Compact, open spaces or ducted plant | Long, divided or uneven spaces |
Check the site before freezing the model
- Power: voltage, phases, available kW, cable route, protection.
- Drainage: gravity drain or pump; 1,000 L/day is about 42 L/h.

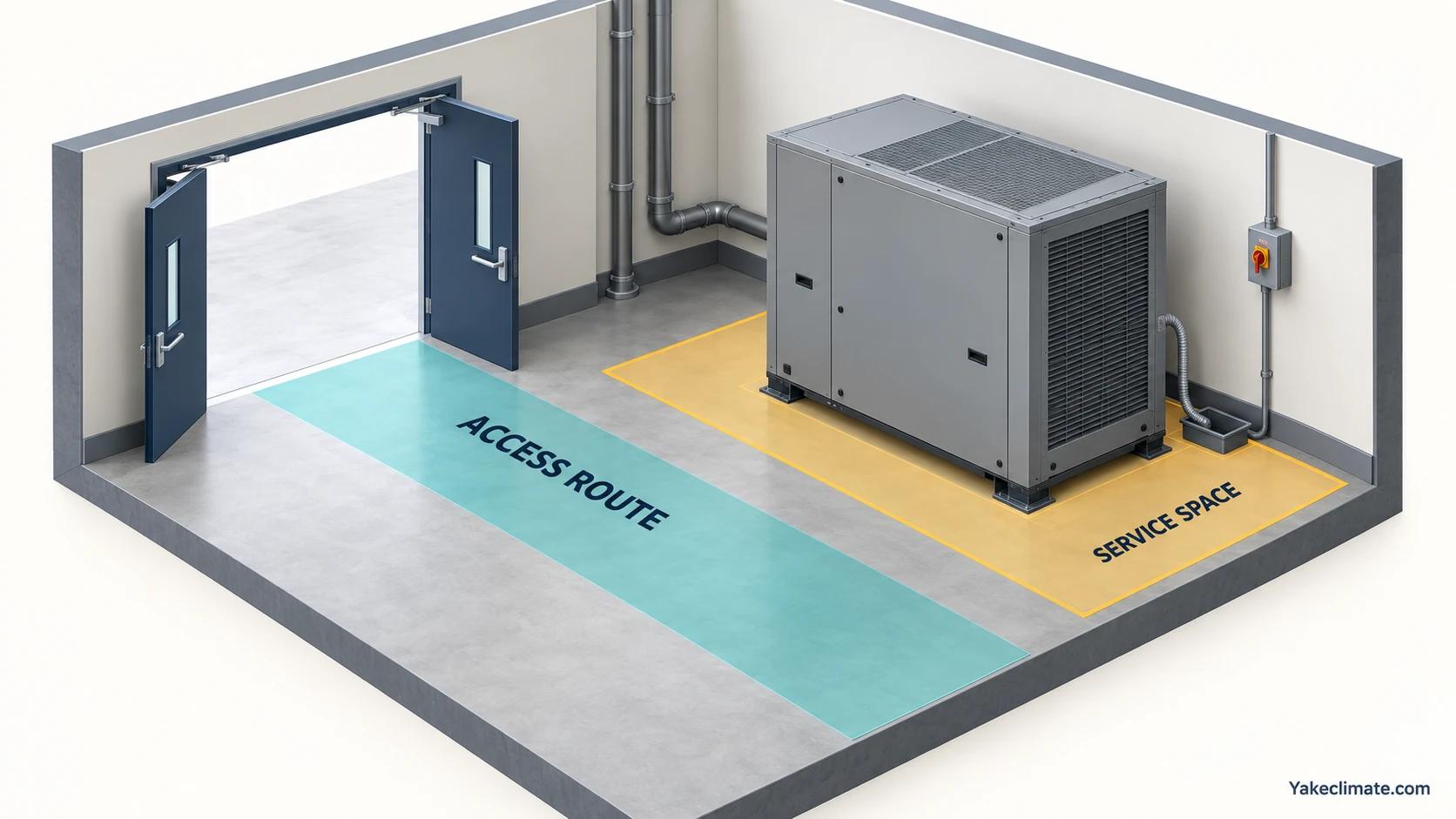

- Access: door widths, lifting, floor or ceiling load.
- Service: filter access, coil cleaning, clearances.
- Controls: sensor locations, BMS interface.
Our large-capacity range
Our industrial dehumidifiers include RYCF units rated 240–960 L/day and RYDZ ducted units up to 960 L/day; ratings are at stated test conditions, and performance at your condition comes from the curve.
FAQ
Frequently asked questions
What is the largest commercial dehumidifier?
Single units can be rated up to around 1,000 L/day; for larger loads, use several units or a ducted plant, sized at your conditions.
How do I size a large dehumidifier?
From the moisture load (infiltration, ventilation, processes, people) at the target condition, then check capacity at that condition.
Is one big unit better than several smaller ones?
For compact or ducted spaces, often yes; for long or divided spaces, several units give better coverage and redundancy.
Sources
- ASHRAE Handbook—Fundamentals, Psychrometrics; HVAC Systems and Equipment, Dehumidification.
