Quick answer: Air conditioning controls temperature, not moisture. A BESS container with AC can still get condensation for seven common reasons. Moisture keeps entering (doors, seals, ventilation). The AC creates cold surfaces and cold supply air. It cycles off when the temperature is satisfied while moisture keeps building. Door openings bring a burst of humid air. Restart after shutdown blows cold air onto humid surfaces. Coil condensate doesn't drain properly. And some zones get little airflow. Diagnose by logging local dew point against the temperature of the wet surface alongside the AC's actual state. Fix the cause first, then add dedicated dehumidification that runs on humidity, independent of cooling demand.
Quick answer
- AC is temperature-led; moisture control needs its own control loop.
- Cold supply air and surfaces + humid air = condensation.
- Log dew point, surface temperature and AC state together.
Seven reasons AC doesn't solve moisture
| # | Cause | What happens |
|---|---|---|
| 1 | Moisture keeps entering | Doors, seals, cable entries, safety ventilation |
| 2 | Cold surfaces | Supply air, evaporator outlets, panels near the discharge |
| 3 | Temperature-led cycling | Compressor stops on temperature; humidity rises |
| 4 | Door events | Outdoor air floods in; slow logging misses it |
| 5 | Shutdown and restart | Restart blows cold air onto humid air and surfaces |
| 6 | Condensate not removed | Blocked or poorly sloped drain; re-evaporation; leaks |

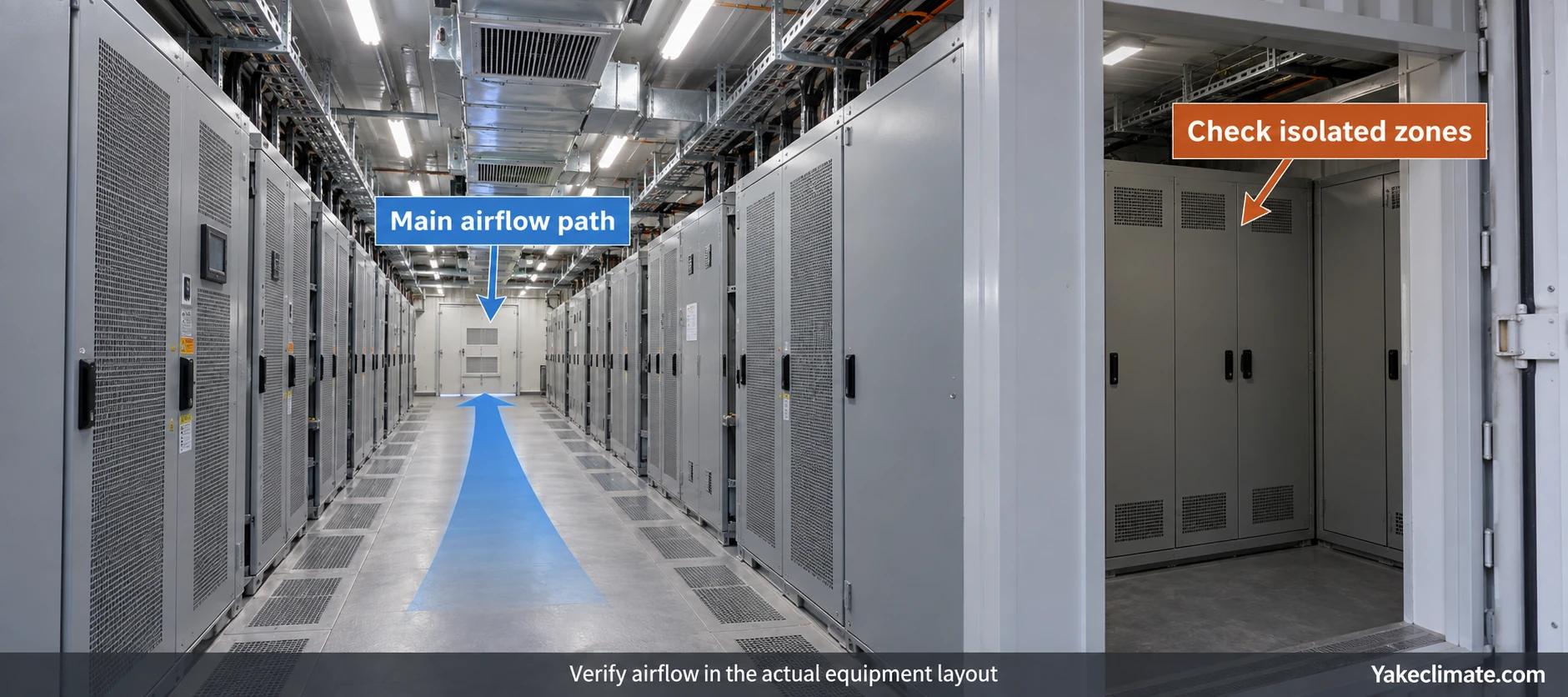

| 7 | Dead zones | Racks, partitions and closed cabinets isolate air |
The US DOE's Electricity Advisory Committee energy storage review covers the wider deployment context for BESS (US DOE EAC, 2022 Biennial Energy Storage Review). IEC 60068-2-30 is a damp-heat cyclic test that generally produces condensation on surfaces, which shows why transitions matter more than steady readings (IEC 60068-2-30).
Example: cold supply air
Container air at 28 °C / 70 % RH has a dew point of about 22 °C. AC supply air at 14 °C cools the panels it hits. Any panel, frame or cable tray that falls below about 22 °C condenses water, even while average container RH looks acceptable.
Diagnostic sequence
- Event record: first wet location, time, outdoor condition, door and drain observations.
- Local air and surface: dew point next to the wet surface and that surface's temperature, at 1–5 minute intervals.
- AC sequence: the actual compressor and fan state (not just commands), setpoints, deadband, restart logic.
- Air distribution: does conditioned air reach the affected zone?
- Drainage: slope, blockage, traps, leaks around the coil drain.
See the general battery cabinet condensation diagnosis.
Match the fix to the mechanism
| Mechanism | Fix |
|---|---|
| Moisture ingress | Seal, door procedures, pressure balance |
| Cold supply air on surfaces | Redirect discharge; raise supply temperature; insulate |
| AC cycling off with moisture remaining | Dedicated dehumidification on a humidity or dew-point loop |
| Door events | Door switch to start drying; recovery requirement |
| Restart | Run dehumidification before cooling restarts |
| Drain failure | Correct drain path; see condensate drainage |
| Dead zones | Fans or air paths to isolated areas |
Related: condensate drainage.
When to add dedicated dehumidification
- Humidity rises whenever the AC is satisfied and cycles off.
- Condensation follows door visits or restarts.
- Liquid-cooling plates or AC surfaces run near the container's dew point.
Size it from the moisture load, using the BESS container sizing method, with our energy storage dehumidifiers.
FAQ
Frequently asked questions
Why does my BESS container have condensation if it has AC?
AC controls temperature; moisture still enters, cold surfaces form, and humidity rises when the AC cycles off.
Does running the AC colder help?
Often not: colder supply air creates colder surfaces and more condensation risk.
Should dehumidification be interlocked with the AC?
It should run on its own humidity or dew-point control, including when cooling is off.
Sources
- ASHRAE Handbook—Fundamentals, Psychrometrics.
- IEC 60068-2-30, Environmental testing – Damp heat, cyclic.
- US DOE Electricity Advisory Committee, 2022 Biennial Energy Storage Review.
