A lower insulation-resistance reading after a humid or condensation event deserves investigation, but the number alone does not identify the cause or establish whether a panel is safe to energize. First determine whether the same circuit, electrical configuration, procedure, instrument conditions, and reading time were used. Then compare the environmental record with the electrical trend while keeping moisture, contamination, material damage, and connected equipment as separate possibilities. A qualified electrical owner must decide what testing, repair, acceptance, and return to service require under the applicable equipment procedure.
Maintenance and environmental-control teams can use this approach to review a wet-weather decline or a later dry-out rebound without treating either pattern as a diagnosis.
What an insulation-resistance reading actually represents
An insulation-resistance result belongs to a particular test object, state, and approved electrical procedure. The measured current can include capacitive charging, absorption, surface leakage, and conduction through insulation. Their balance changes over the reading period, so values taken at different times or configurations may not describe a material change. Insulation-instrument technical literature documents these components and the influence of damp or salty surfaces; it does not establish one acceptance value for every panel.
Moisture can strengthen a surface leakage path, especially where salts or other deposits are present. Temperature, absorbed moisture, and aging may affect different materials differently. A lower reading cannot be assigned to “humidity” solely because ambient relative humidity was high. The electrical owner must consider the circuit boundary, connected components, insulation condition, and applicable manufacturer's criteria.
Relative humidity describes air at a stated temperature; it does not show whether an insulating surface was wet. A cooler surface may reach the nearby air's dew point while a distant room sensor looks ordinary. Humid air alone does not prove surface leakage. The battery-enclosure dew-point guide explains the local condensation condition. That physical check informs the environmental investigation; it does not replace electrical assessment.
Build a record that makes readings comparable
A useful trend begins with identity and context. Ask the qualified electrical team whether existing records are comparable. The environmental team can add observations to the same time line without performing or prescribing an electrical test. Mark missing fields unknown.
| Record field | What to retain for each reading | Why the comparison needs it |
|---|---|---|
| Asset and boundary | Panel, circuit, insulation system, and precisely identified test object | Two labels may refer to different portions of an installation. |
| Approved electrical record | Procedure and revision, instrument identity, recorded voltage setting and reading duration, and recorded connection or isolation state | The measured current and displayed resistance depend on the approved configuration and time basis. |
| Instrument confidence | Calibration status and stated measurement uncertainty, when available | A small apparent shift may be less meaningful than the record suggests. |
| Object condition | Component or insulation temperature and relevant maintenance or repair history | Temperature and changes to the object can affect interpretation. |
| Nearby environment | Air temperature, relative humidity, calculated or measured dew point, locations, and observation time | A local condition is more informative than an unrelated room average. |
| Surface and event | Visible wetness or deposits, photographs already collected by the site team, enclosure operating mode, door or cooling event, and weather | These observations help form hypotheses without proving causation. |
The voltage setting and connection state in this table are record identifiers, not instructions for choosing a setting or changing a connection. The electrical team owns the approved procedure, isolation, discharge, instrument use, and interpretation. An environmental supplier should receive only the context needed to define a moisture-control duty, with site safety and information-sharing rules observed.
Compare the asset, test boundary, procedure revision, instrument method, duration, and documented configuration before treating values as a trend. Note changed connections or repairs. Record component and enclosure air temperatures separately. If evidence is incomplete, “trend uncertain” is more accurate than a moisture diagnosis.
Use the pattern to decide who investigates next
The immediate question is which explanation remains plausible under the recorded conditions. The table below is a qualitative routing aid. It cannot determine electrical acceptance or prescribe a maintenance action.
| Record pattern | Working interpretation | Next owner decision |
|---|---|---|
| Asset boundary, procedure, duration, or connection state differs or is unknown | The readings are not yet a reliable trend. | The qualified electrical owner determines what can be compared and whether further electrical evaluation is required. |
| Lower readings coincide with visible wetness or deposits at a relevant surface | A moisture-assisted surface leakage path is plausible, with contamination and other faults still open. | The electrical owner evaluates insulation condition and safety; the enclosure owner investigates the water or deposit source. |
| Decline persists across readings the electrical owner judges comparable, including after environmental conditions change | A persistent insulation, contamination, or connected-equipment issue may remain. | The electrical owner applies the approved diagnostic and acceptance process; an environmental change alone is insufficient. |
| Evidence is mixed, sparse, or a value rebounds after drying | The cause and present condition remain unresolved. | Keep the case open for qualified electrical review and collect the missing environmental context without claiming recovery. |
Branches can overlap: a wet surface may coexist with degraded insulation, and a damaged seal may admit liquid water and humid air. The cabinet condensation diagnosis guide separates rain, drain, cooling-system, and cold-surface pathways. It helps locate a moisture source, not diagnose the electrical test object.
The distinction matters after apparent improvement. Drying can remove a temporary conductive film or change surface conditions, so a later reading may rise. That does not establish that deposits were removed, internal material condition recovered, an intermittent fault disappeared, or the equipment meets its electrical acceptance criteria. Return-to-service decisions remain with qualified electrical personnel using the applicable equipment documentation and site process.

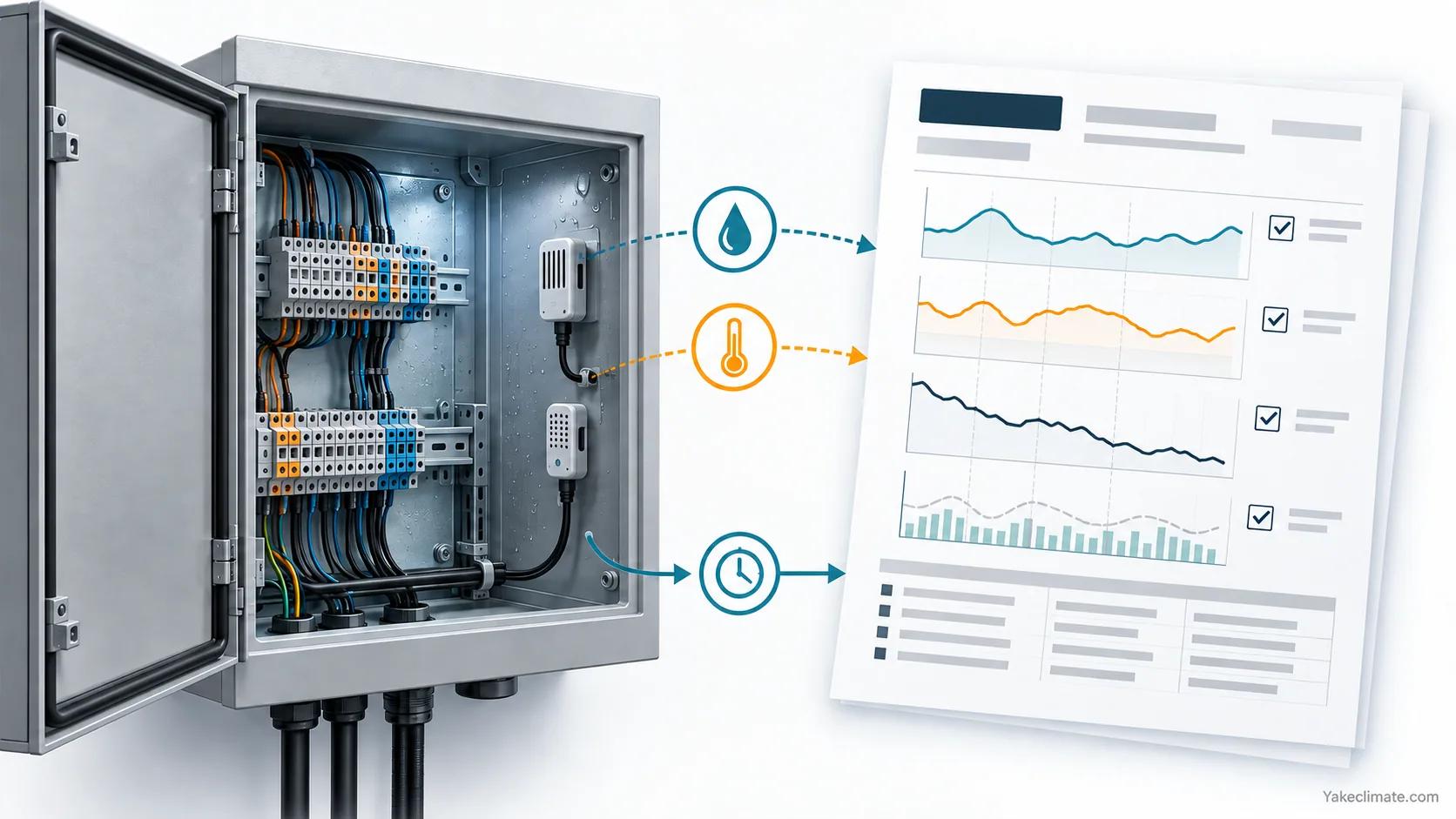

Align the moisture time line with the electrical trend
Put reading times and environmental events on one axis. Include observation locations and timestamps, enclosure operating mode, weather, door and thermal transitions, and known water entry or drainage events. Record the first wet location, not just where water collected. An available event photograph may locate a surface but cannot reveal insulation's internal condition.
Look for a credible sequence: Did nearby air moisture rise before a cold surface became wet? Did a reading change during the same event, or was it taken hours later after temperature and equipment state had changed? Did the pattern recur under comparable electrical and environmental conditions? Time alignment makes a hypothesis more testable, but coincidence does not prove that moisture caused the electrical reading. A useful review also records periods when humidity rose without an electrical change and times when the reading changed without a documented moisture event.
A peer-reviewed laboratory enclosure study found that openings and thermal mass affected peak internal humidity. With temperature cycling, the study observed condensation and increased leakage current on salt-contaminated test patterns. It supports a possible mechanism under its laboratory conditions. It is not a measured result for a particular panel, battery enclosure, or customer site. The sensor-placement guide helps the environmental team decide whether its logged air and surface points could represent the actual risk zone.
Dry-weather comparisons may also differ in temperature, air exchange, operating load, or surface condition. If clocks, locations, or uncertainty do not align, state the comparison's limit.
Separate electrical acceptance from moisture-control design
The qualified electrical owner evaluates the insulation system, connected equipment, test validity, repair requirements, and safe operating status. The enclosure or system designer owns the enclosure boundary, ingress paths, operating sequence, and the environmental condition to be controlled. An environmental-control supplier can review equipment only against a defined moisture-removal duty and agreed interfaces. Those responsibilities should be explicit in the handoff so a proposed dehumidifier is not mistaken for an electrical clearance.
Professional guidance for a specific outdoor electrical assembly class discusses condensation, pollution, design, and responsibility. It cannot establish an acceptance rule for every industrial panel. The applicable enclosure and electrical owners must coordinate their reviews.
The environmental question is whether a controllable water-vapor load remains after the team has examined direct liquid ingress, drainage, cold surfaces, and air paths. Removing vapor can lower an enclosure's air dew point under a defined duty. It cannot mend a leaking gland, eliminate salts or deposits, repair insulation, or certify the electrical system. The electrical-cabinet moisture-control guide describes how enclosure conditions, drainage, and controls affect equipment selection.
For an equipment review, provide an enclosure drawing and boundary; internal and outdoor air temperature, relative humidity, and dew-point profiles at stated locations; relevant surface temperatures; known water entry or wetting events; heat loads and cooling modes; air exchange and flow paths; a feasible condensate drain; mounting and service constraints; control and alarm interfaces; and the environmental condition and validation period the project owner requires. Mark measurements, estimates, and unknowns separately. The supplier can then assess a proposed removal duty and equipment interfaces at the stated conditions. Electrical acceptance remains a separate decision.
FAQ
Frequently asked questions
Does a low insulation-resistance reading mean humidity caused the problem?
No. Moisture or deposits can increase surface leakage, but temperature, test duration, object condition, connection state, and connected equipment can also affect the result. Establish comparability first, then let the qualified electrical owner assess the possible causes.
Can a normal room RH reading rule out condensation inside a panel?
No. RH is local to the measured air and its temperature. A cooler internal surface may have a different condensation condition, and a room sensor may not represent the air beside it. Review the relevant surface, nearby air, sensor location, and event time.
Is a rising reading after drying evidence that insulation is safe?
It is evidence that the measured condition changed, not proof of recovered insulation or clearance to energize. Deposits, absorbed moisture, material damage, and intermittent problems may remain. The electrical owner applies the approved acceptance and return-to-service process.
What if two readings were taken with different procedures or circuit boundaries?
Treat the trend as unresolved. Preserve both records and the differences rather than averaging or comparing them as equivalent results. The electrical owner decides whether the records support any conclusion and what further evaluation is appropriate.
Should the team add a dehumidifier when a wet event and a lower reading coincide?
First establish where the water came from and whether a defined vapor-removal duty remains. Rain entry, a drain leak, cold-surface condensation, and contamination call for different responses. Equipment selection cannot substitute for electrical evaluation or source correction.
What should the environmental-control supplier receive?
Share the enclosure boundary, event history, local air and surface conditions, moisture-entry and air paths, heat and cooling modes, drain and service constraints, controls, and the required environmental validation. Share electrical results only as authorized context. The supplier reviews the environmental duty; qualified electrical personnel retain test and acceptance authority.
Bring the two records together
A useful investigation ends with comparable electrical records, a time-aligned local moisture account, and owners for unresolved questions. Keep electrical acceptance with the qualified electrical team. Define the remaining enclosure moisture duty before reviewing equipment fit.
Technical sources and scope
An insulation-instrument manufacturer's Insulation testing diagnostic techniques (2008) and How insulation resistance is measured (2024) explain measured-current components, time dependence, and possible moisture or salt-related surface leakage. They do not set a universal panel acceptance value. A peer-reviewed 2016 study, Humidity Build-Up in a Typical Electronic Enclosure Exposed to Cycling Conditions and Effect on Corrosion Reliability, reports a laboratory enclosure mechanism, not field performance for this application. The IET inspection-and-testing FAQs support the qualified-person and connected-equipment boundary for the UK installation class they address. Separate IET outdoor-enclosure guidance and IEC TS 62271-304:2019 inform the condensation and scope discussion only; neither is applied here as a general industrial-panel requirement or US electrical acceptance rule.
