Peltier vs Compressor Cabinet Dehumidifiers: Compare the Duty Before the Rating

For an electrical cabinet, choose between a Peltier and compressor dehumidifier by checking the moisture-removal duty at the actual inlet temperature and humidity, then checking mounting, heat rejection and drainage. A compact Peltier unit can be a candidate for a small protected enclosure; a compressor unit can be a candidate when its verified capacity and installation arrangement suit the larger duty. Neither technology wins simply because its nameplate shows fewer watts or more litres per day.

Start with the Peltier cabinet models for published configurations. If your enclosure needs a different mounting arrangement, air path or control interface, send the conditions through the equipment co-development requirements form.

How the two technologies remove water

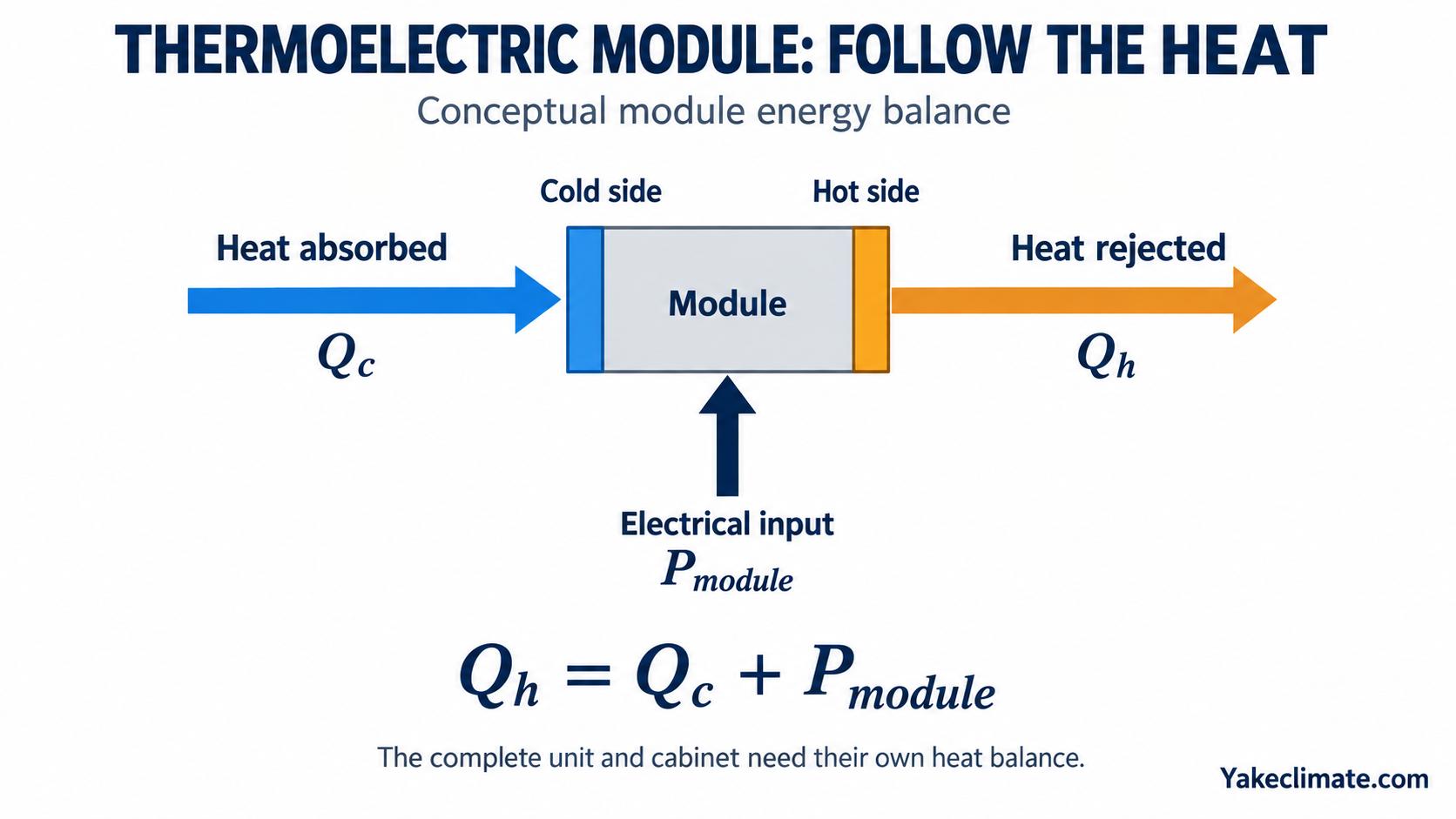

A Peltier, or thermoelectric, module transfers heat from a cold side to a hot side when supplied with electrical power. Air moisture can condense on a sufficiently cold collection surface and leave through a drain. The heat absorbed at the cold side and the electrical input must ultimately be rejected through the hot-side arrangement. A semiconductor module has no compressor, but the complete device can still contain fans and requires an unobstructed air path.

A compressor dehumidifier uses a refrigerant circuit to cool an evaporator surface, collect condensate and reject heat at the condenser. An in-space dehumidifier commonly returns warmed, drier air. The location of the condenser and the air routes determine where that heat goes; removing water does not by itself provide net cabinet cooling.

The thermoelectric experimental study by Rakkwamsuk and colleagues illustrates why the cold-side airflow and hot-side cooling arrangement belong in the assessment. Its laboratory prototype used water cooling; it is not an ADS performance test. ENERGY STAR's dehumidifier definitions describe the refrigerated surface, air circulation and condensate collection of refrigerating dehumidifiers. Those residential certification criteria do not certify an industrial cabinet model.

Define the cabinet duty before comparing models

Record the enclosure's internal temperature and RH during normal operation, shutdown, door opening and restart. Identify cold surfaces and determine whether the problem is condensation, liquid ingress or both. A cabinet that is dry during a warm operating period may have a different duty during a cold shutdown.

The target also matters. A published removal rate at hot, humid conditions cannot be carried unchanged to a cooler cabinet or to the final, drier part of a recovery cycle. Use the BESS sizing inputs guide to assemble the air boundary, incoming moisture, opening events and recovery requirement. Cabinet volume alone does not describe a continuous moisture load.

What the ADS catalogue establishes

The following figures are published configuration data for the named Yakeclimate models. Removal figures apply at 35°C / 85% RH. Power figures are catalogue rated inputs, not measured energy totals for a cabinet recovery cycle.

For configuration details, see the ADS-500ML product data and ADS-1000ML product data. Both list external hose drainage. Their body dimensions exclude the additional space your installation needs for connections, airflow and maintenance.

The catalogue lists a working-temperature range of −30°C to +55°C for these models. This does not establish the water-removal rate at either endpoint, continuous liquid-water drainage below freezing, or achievement of a particular dew point. Obtain the applicable operating and performance information for the proposed configuration before using that range in a selection.

The ADS-500ML lists AC 220–240 V, 50/60 Hz and DC 24 V configurations; ADS-1000ML lists AC 220 V and DC 24 V configurations. Confirm the exact supply variant. RS485 is listed, but the project still needs the protocol, register map and alarm behaviour for its selected controller.

Put compressor catalogue figures on their own rating basis

Yakeclimate also lists compact refrigerant models. Their removal figures below apply at 30°C / 80% RH, a different condition from the Peltier table. Rated electrical input and body dimensions describe the named configuration; they are not a measured energy comparison.

See the ADS-100WB-01, ADS-100WB-06 and ADS-10D product data. Check the actual body shape against the mounting space rather than assuming every compressor device is too large for a cabinet.

For example, ADS-1000ML in ABS and ADS-100WB-06 both list 150 W rated input, but their removal figures use different temperature/RH conditions. Equal catalogue watts do not make their daily removal ratings a matched test. The data support a shortlist and a request for comparable performance evidence.

Make the energy comparison on a common basis

Ask each supplier for a test or performance curve at the proposed inlet temperature and RH, with the same target and recovery period. The record should identify the complete electrical boundary, including relevant fans, controls, power conversion and pumps. Record collected water and electrical energy over the same interval.

Use water collected divided by energy consumed, expressed in L/kWh, to compare that defined duty. Also check whether each candidate actually reaches the required condition in time. A device with low input power may run longer or fail to meet the duty; a larger device may cycle differently. Neither result can be resolved from watts alone.

The published ADS figures above do not include a matched compressor test. They therefore cannot establish a technology efficiency ranking. Dividing a nominal daily removal figure by rated watts assumes operating behaviour that has not been demonstrated. An ENERGY STAR integrated energy factor is also a defined test metric; a catalogue arithmetic ratio should not be labelled as that certification result.

Check the installed air and water paths

Mark the inlet, dry-air discharge, hot-side heat rejection and drain route on the cabinet drawing. Keep the treated air connected to the zone that needs protection. If discharge returns immediately to the inlet, the device can repeatedly treat nearby air while a distant compartment remains humid. Internal partitions and cable density can make cabinet-average measurements unrepresentative.

For a compressor proposal serving an equipment room or container, establish how that air treatment reaches the cabinet. A room unit and an internal cabinet unit are different installation boundaries. An enclosure's ingress protection, cooling strategy and permitted openings need review before adding ducts or changing air exchange.

Confirm drainage at the installed orientation and discharge location, including any pump or cold-weather requirement. Maintenance access must allow the specified inspection and cleaning without disturbing electrical assemblies. Use the cabinet condensation diagnosis guide when the source of the water is uncertain.

Send a comparison brief that can be answered

Provide the cabinet layout, mounting space, internal heat load, simultaneous air and surface observations, door schedule, required humidity or dew point, and recovery period. Add the power supply, drain route, control interfaces and permitted maintenance access. Ask the supplier to state the tested operating points, unresolved conditions and acceptance method beside its proposed model.

Review Peltier models and cabinet installation inputs, or submit application-specific equipment requirements. This produces a model and interface review that can be checked against your cabinet, while electrical assembly acceptance remains with the equipment and electrical owners.
