A commercial dehumidifier with a pump is usually requested when gravity drainage is difficult. The useful design question is whether the complete condensate path can move water safely from the unit to an approved discharge point under the site's operating conditions.
Use this drainage plan with the industrial dehumidifier product family, so the pump is not treated as an isolated accessory.
Related resources include the industrial dehumidification resource page and the commercial dehumidifier selection guide.
Start With the Drain Route, Not the Pump
Map the route from the unit outlet or reservoir to an approved discharge point. Record the drain elevation, horizontal run, number of bends, pipe or hose size, access points, exposure to freezing or damage, vibration, and where water could back up into the equipment.
Gravity drainage is generally the simplest arrangement when a lower discharge point is available and the route can keep a reliable fall. A built-in or external pump may be needed when the discharge point is higher, the route is long, or the site needs a separate alarm and service boundary.
| Input | Why it matters |
|---|---|
| Drain elevation | Decides whether gravity drainage is possible. |
| Total head at required flow | Combine vertical lift with line, fitting, check-valve and discharge losses at the required peak flow; verify one operating point on the pump curve. |
| Route length and bends | Affect resistance, access and blockage exposure. |
| Approved discharge | Defines plumbing responsibility and safe water disposal. |
| Maintenance access | Allows reservoir, trap, hose and check-valve service. |
Estimate Condensate Duty Before Choosing the Drain Format
Start with the selected equipment's expected water-removal duty at the stated entering-air condition, then account for operating hours, cycling, defrost or protection periods and the design moisture load. Do not insert an unsupported large-project magnitude into the article or into a request for quotation.
Separate peak duty from sustained duty. A short pull-down or recovery event can need a different reservoir, alarm and route response from a full-night continuous condition. If several units share a header, define whether the header must carry simultaneous flow and who owns its maintenance.
| Question | Engineering reason |
|---|---|
| What is the expected condensate duty at the design condition? | Pump, pipe, drain, reservoir and alarm decisions should match the stated basis. |
| Is the duty peak, sustained or transitional? | Storage and overflow response depend on duration as well as rate. |
| Will units drain separately or to a header? | A header changes flow assumptions and plumbing ownership. |
| What happens during blockage or pump failure? | The response may require high-water alarm, shutdown interlock or controlled attendance. |
Choose Gravity Drain, Built-In Pump or External Pump
Use gravity where the route can remain continuously falling, protected and accessible. For a built-in pump, combine static lift, line and fitting losses, check-valve loss and any discharge pressure at the required peak condensate flow; verify that single flow–total-head duty point on the manufacturer pump curve, along with reservoir capacity and permitted cycling or run limits. Consider an external pump or central condensate arrangement when the built-in pump cannot meet that duty or when access, alarm logic or multiple-unit coordination requires a different design.
Keep gravity and pumped routes distinct in the drawing. Show where the pump begins, where the required lift is measured, where any reservoir or check valve sits, and where the discharge is accepted.
Plan Trap, Backflow and Overflow Protection
Some installations need a trap, check valve, air break or backflow protection. Confirm the arrangement, dimensions and installation responsibility against the equipment manual, the pump arrangement, operating pressure and applicable site requirements. Do not present one trap-depth formula as universal.

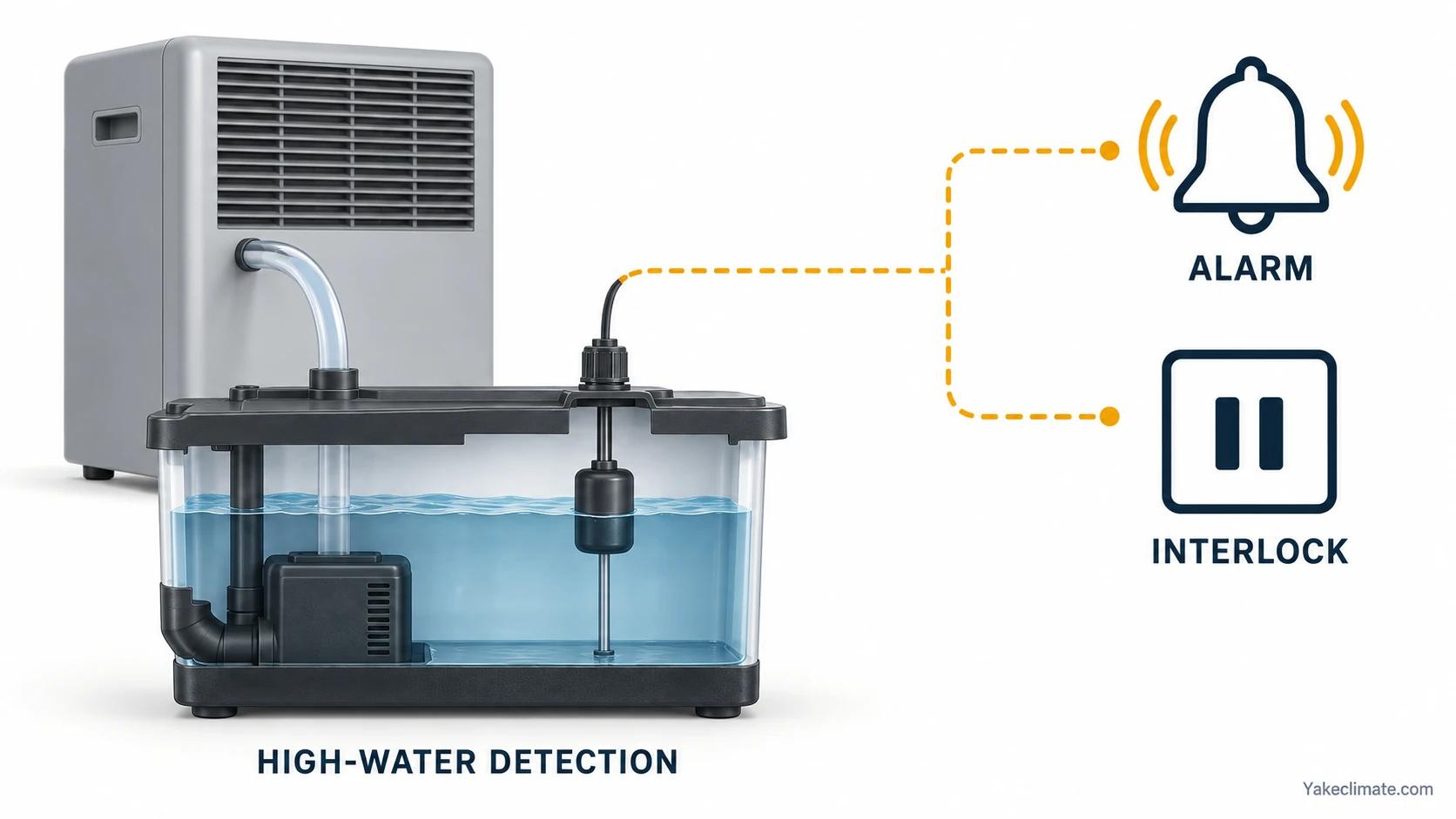

Overflow protection is a project decision. In an unattended warehouse, electrical room or crop space, define the high-water switch or sensor, alarm destination, shutdown or interlock sequence, and who responds. Keep the consequence and response together in the design record.
Connect Drainage to Maintenance
Drain failures can look like equipment failures. Dust, biological film, sediment, insects, a kinked hose, frozen sections or a stuck check valve can stop water movement while the dehumidifier continues to operate.
The commercial dehumidifier maintenance checklist should include drain-pan inspection, pump-reservoir cleaning, alarm testing and confirmation that discharge remains open during the actual operating season.
Use Direct Measurements and Stated Test Conditions
Drainage planning needs a stated condensate basis. Record the equipment model and configuration, entering-air temperature and RH, expected water-removal duty, operating hours, cycling or defrost assumptions, drain elevation, route and pump curve. Unknown inputs can remain open, but they should be labelled rather than replaced with a large illustrative number.
For commissioning, record the actual unit inlet condition, runtime, water-removal observation or measurement, reservoir state, pump start and stop, discharge flow where measured, alarm signal and shutdown response. The result applies to the tested arrangement and period; it does not prove every future site condition.
Review installation site readiness before finalising the drain route, utilities and service access.
Use This Topic as a Drainage Handoff
A drainage request should state the unit location, expected condensate duty and operating schedule, drain-point elevation, route length and access, permitted discharge, power and utilities, pump or gravity preference, trap or backflow requirements, alarm and interlock expectations, and maintenance ownership.
A model number alone is not a drainage design. Ask for the pump curve or gravity requirement, the stated test condition behind the water-removal figure, the discharge arrangement, service access and the response to a blocked or failed drain.
FAQ
Frequently Asked Questions
Does a commercial dehumidifier need a condensate pump?
Only when gravity drainage cannot reliably move condensate to a safe drain point. If a lower drain point is available and the route can stay open, protected and accessible, gravity drainage may be simpler.
Can a condensate pump push water upward?
Yes, if the pump can deliver the required condensate flow at the route's total head. Combine vertical lift with line, fitting, check-valve and discharge losses, then verify that combined duty point and permitted cycling or run limits on the manufacturer curve.
Should pump failure stop the dehumidifier?
For an unattended commercial site, define the response from the overflow consequence. A high-water alarm, equipment shutdown interlock or controlled fallback may be appropriate when continued condensate production could cause damage; the responsible controls team must confirm the sequence.
Is a drain hose enough for an industrial dehumidifier?
No. A hose is one part of the drain path. Slope or pump head, route protection, trap or backflow arrangement, blockage response, discharge permission and maintenance access still need review.
