Ultrasonic Humidifier
RYJS-48D
Ultrasonic Humidifier – 48kg/h Output Humidifier

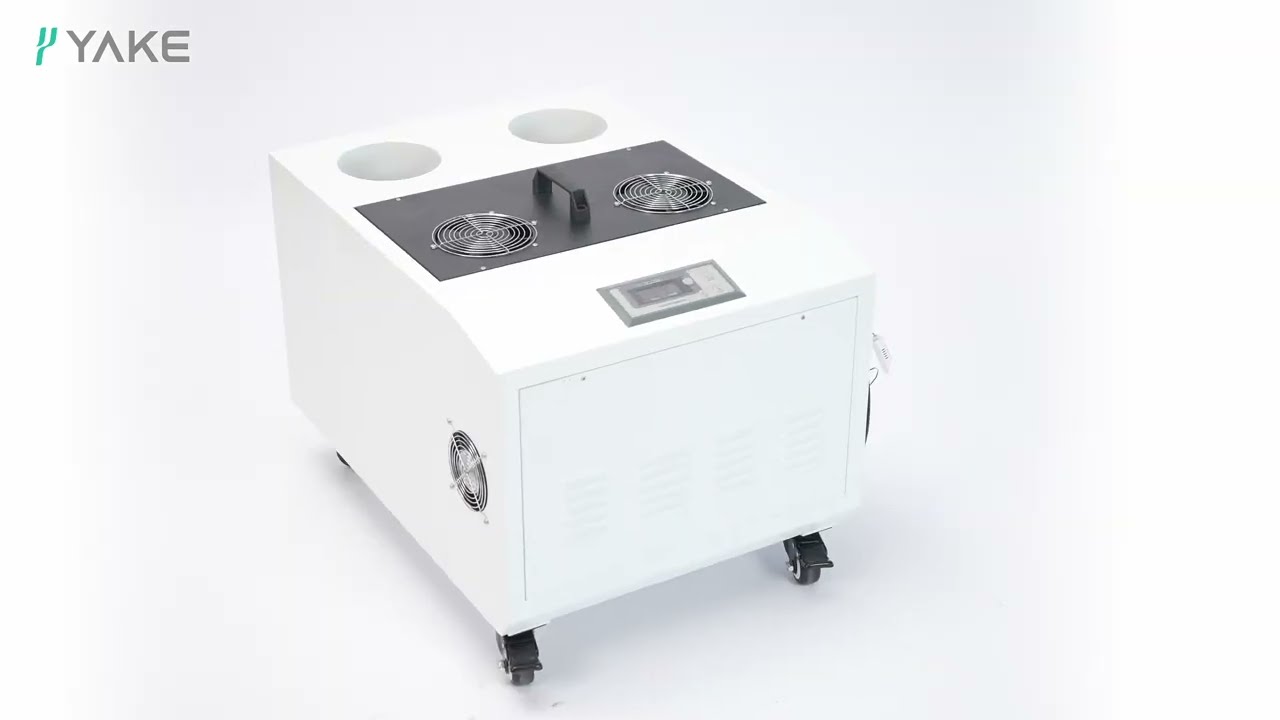

RYJS-48D is an ultrasonic humidifier with a rated output of 48 kg/h, intended for controlled environments that require industrial humidity compensation. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
- Humidification Capacity
- 48 kg/h
- Power Supply
- 380/3ph/50 V/Hz
- Rated Power
- 4.8 kW
- Adjustable Humidity Range
- 10-95 RH %
RYJS-48D
Product selection should be confirmed against temperature, target humidity, airflow, drainage, power supply, and installation conditions.
Product overview
What RYJS-48D is designed to do
RYJS-48D is an ultrasonic humidifier with a rated output of 48 kg/h, intended for controlled environments that require industrial humidity compensation. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
01
Automatic humidity control with a digital display and an adjustable setpoint range of 10–95% RH
02
Fine mist output with a particle size of up to 10 μm
03
Automatic water inlet and water-level control
04
Automatic stop at the humidity setpoint and restart when humidity falls below the setpoint
05
Power-off memory and timer control
06
External humidity sensor can be installed separately from the unit
Product video
See RYJS-48D in detail
Review the equipment form, exterior layout, and product details in this short video before confirming selection and integration requirements for your project.
Watch on YouTube This video presents the equipment itself. Final model selection and configuration still depend on operating conditions and project requirements.Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
| Specification | Unit | RYJS-48D |
|---|---|---|
| Power Supply | V/Hz | 380/3ph/50 |
| Humidification Capacity | kg/h | 48 |
| Fog Particle Size | μm | ≤10 |
| Rated Power | kW | 4.8 |
| Adjustable Humidity Range | RH % | 10-95 |
| Fog Outlet Diameter | mm | 160*2 |
| Timer Function | — | Timer control |
| Control Method | — | Humidity automatic control |
| Dimensions | mm | 800*650*550 |
| Machine Weight | kg | 55 |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Healthcare
- 02Manufacturing
- 03Agriculture
- 04Food
- 05Printing
- 06Museums and Art Galleries
- 07Woodworking
- 08Textile
- 09Warehouses and storage
- 10Hospitality
