Ultrasonic Humidifier
RYJS-21D
Ultrasonic Humidifier – 21kg/h Output Humidifier

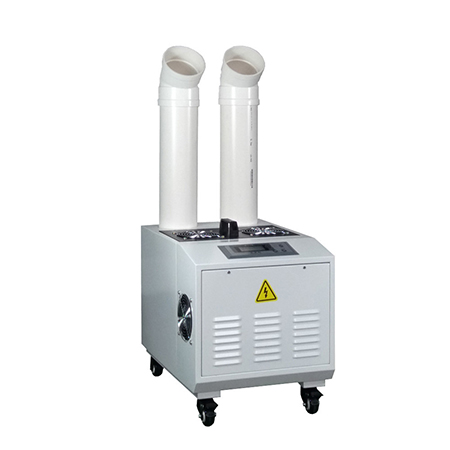

RYJS-21D is an ultrasonic humidifier with a rated output of 21 kg/h, intended for controlled environments that require industrial humidity compensation. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, water quality and supply, airflow, mist absorption distance, power supply, and control requirements.
- Humidification Capacity
- 21 kg/h
- Power Supply
- 220/1ph/50 V/Hz
- Rated Power
- 2.1 kW
- Adjustable Humidity Range
- 10-95 RH %
RYJS-21D
Confirm humidification output, water quality and supply, mist absorption distance, airflow, power supply and controls for the project.
DEFINITION
What is an ultrasonic humidifier?
An ultrasonic humidifier adds moisture to air as fine water mist without a heating process. This family provides humidity compensation for greenhouses, textile applications, cold storage and other controlled environments. Selection depends on the required humidification output, water quality, airflow, room conditions and installation position; automatic humidity-control functions vary by model and configuration.
Confirm humidification output, water quality and supply, mist absorption distance, airflow, power supply and controls for the project.
RYJS-21D has a published humidification output of 21 kg/h. Confirm rating conditions and the required output for the project before selection.
Product overview
What RYJS-21D is designed to do
RYJS-21D is an ultrasonic humidifier with a rated output of 21 kg/h, intended for controlled environments that require industrial humidity compensation. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, water quality and supply, airflow, mist absorption distance, power supply, and control requirements.
01
Automatic humidity control with a digital display and an adjustable setpoint range of 10–95% RH
02
Fine mist output with a particle size of up to 10 μm
03
Automatic water inlet and water-level control
04
Automatic stop at the humidity setpoint and restart when humidity falls below the setpoint
05
Power-off memory and timer control
06
External humidity sensor can be installed separately from the unit
Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
| Specification | Unit | RYJS-21D |
|---|---|---|
| Power Supply | V/Hz | 220/1ph/50 |
| Humidification Capacity | kg/h | 21 |
| Fog Particle Size | μm | ≤10 |
| Rated Power | kW | 2.1 |
| Adjustable Humidity Range | RH % | 10-95 |
| Fog Outlet Diameter | mm | 110*2 |
| Timer Function | — | Timer control |
| Control Method | — | Humidity automatic control |
| Dimensions | mm | 550*420*470 |
| Machine Weight | kg | 34 |
HUMIDIFICATION SELECTION
Match humidification output, water supply and mist distribution
Use the published model data to compare output and controls, then confirm water supply and mist distribution against the installation conditions.
| Selection input | Published data or project input | Confirm for the project |
|---|---|---|
| Humidification output | 21 kg/h | Required moisture addition and rating conditions |
| Water quality and supply | Provide the available water source and water-quality information | Water treatment, supply pressure and maintenance requirements |
| Mist distribution and controls | Review the model's fog outlet and control-method specifications | Absorption distance, airflow path, sensor location and control interfaces |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Healthcare
- 02Manufacturing
- 03Agriculture
- 04Food
- 05Printing
- 06Museums and Art Galleries
- 07Woodworking
- 08Textile
- 09Warehouses and storage
- 10Hospitality
Compare the range
Other Ultrasonic Humidifier models
RYJS-03D Ultrasonic Humidifier – 3kg/h Output Humidifier
3 kg/h
RYJS-06D Ultrasonic Humidifier – 6kg/h Output Humidifier
6 kg/h RYJS-09D Ultrasonic Humidifier – 9kg/h Output Humidifier
9 kg/h RYJS-12D Ultrasonic Humidifier – 12kg/h Output Humidifier
12 kg/h RYJS-15D Ultrasonic Humidifier – 15kg/h Output Humidifier
15 kg/h RYJS-18D Ultrasonic Humidifier – 18kg/h Output Humidifier
18 kg/h
RYJS-24D Ultrasonic Humidifier – 24kg/h Output Humidifier
24 kg/h RYJS-30D Ultrasonic Humidifier – 30kg/h Output Humidifier
30 kg/h RYJS-36D Ultrasonic Humidifier – 36kg/h Output Humidifier
36 kg/h RYJS-42D Ultrasonic Humidifier – 42kg/h Output Humidifier
42 kg/h
RYJS-48D Ultrasonic Humidifier – 48kg/h Output Humidifier
48 kg/h RYJS-54D Ultrasonic Humidifier – 54kg/h Output Humidifier
54 kg/h RYJS-60D Ultrasonic Humidifier – 60kg/h Output Humidifier
60 kg/h
RYJS-66D Ultrasonic Humidifier – 66kg/h Output Humidifier
66 kg/h RYJS-72D Ultrasonic Humidifier – 72kg/h Output Humidifier
72 kg/h RYJS-78D Ultrasonic Humidifier – 78kg/h Output Humidifier
78 kg/h RYJS-84D Ultrasonic Humidifier – 84kg/h Output Humidifier
84 kg/h RYJS-90D Ultrasonic Humidifier – 90kg/h Output Humidifier
90 kg/h RYJS-96D Ultrasonic Humidifier – 96kg/h Output Humidifier
96 kg/h RYJS-102D Ultrasonic Humidifier – 102kg/h Output Humidifier
102 kg/h SELECTION STEPS
How to select the right configuration
- Step 1 — define the humidification requirement. Provide the operating temperature, current and target relative humidity, room volume and ventilation conditions so the required moisture addition can be reviewed.
- Step 2 — review water supply and mist distribution. Provide water-quality information, available supply conditions, the airflow path and outlet position. Confirm water treatment, supply pressure and mist absorption distance for the project.
- Step 3 — compare humidification output in kg/h. Review the model's published output, power supply and control method. Confirm rating conditions, humidity-sensor location and any external control interface before ordering.
FAQ
Frequently Asked Questions
How much humidification output does the project need?
The published humidification output for RYJS-21D is 21 kg/h. Provide temperature, current and target humidity, room volume and ventilation conditions for an output review. Confirm rating conditions and final selection for the project; floor area alone is not enough.
What water quality and supply are required?
Provide the water source, available water-quality analysis and supply conditions. Water treatment, inlet pressure and maintenance requirements must be confirmed for the model and project before ordering.
What mist absorption distance and control arrangement should be planned?
Provide the outlet layout, airflow path, temperature, target humidity and nearby surfaces for review. Confirm the mist absorption distance for these conditions. The model tables list automatic humidity control; confirm sensor placement and any required external control interface for the selected configuration.
Project support
Confirm the right configuration for your operating conditions.
Share the operating temperature, current and target humidity, room dimensions, ventilation, water quality and supply, outlet layout, power supply and control requirements. Yakeclimate can review the humidification output and configuration for your project.
