Ultrasonic Humidifier
RYJS-12D

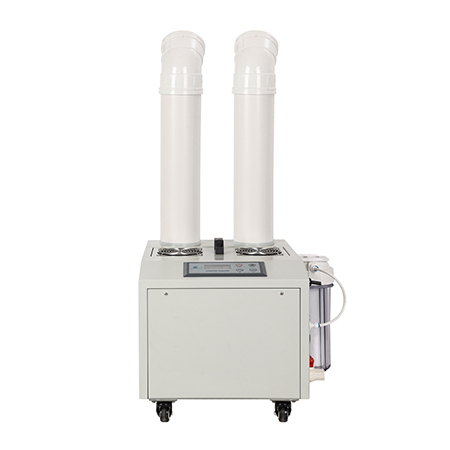

Ultrasonic Humidifier – 12kg/h Output Humidifier
RYJS-12D is an ultrasonic humidifier with a rated output of 12 kg/h, intended for controlled environments that require industrial humidity compensation. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
- Humidification Capacity
- 12 kg/h
- Power Supply
- 220/1ph/50 V/Hz
- Rated Power
- 0.655 kW
- Adjustable Humidity Range
- 10-95 RH %
RYJS-12D
Product selection should be confirmed against temperature, target humidity, airflow, drainage, power supply, and installation conditions.
DEFINITION
What is an industrial dehumidifier?
An industrial dehumidifier is a humidity-control device that removes water vapor from ambient or process air and holds relative humidity at a defined operating level. Industrial models are specified against the operating temperature, target humidity, airflow, drainage, and power supply of a project rather than by floor area alone.
RYJS-12D is a Ultrasonic Humidifier unit with a published rated capacity of 12 kg/h on this page.
Yakeclimate designs and manufactures industrial dehumidification equipment for complex climate applications, with a focus on agriculture and energy projects.
Product overview
What RYJS-12D is designed to do
RYJS-12D is an ultrasonic humidifier with a rated output of 12 kg/h, intended for controlled environments that require industrial humidity compensation. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
01
Low Energy Consumption and Sufficient Power: Built-in super-energy atomizing and humidifying parts, high energy efficiency ratio, large atomizing amount, and atomizing particles are only 1-5um
02
Automatic & Multi-mount Way: The operating system of the machine is a fully automatic digital display control system with control accuracy within ±5%. The bottom of the machine is equipped with casters for easy movement. It can also be mounted on the wall. It is made of high quality stainless steel
03
Safety and Intelligence: Leakage protection.Over-temperature power-off protection.Automatic water level detection of humidification module. Automatic protection against water shortage.Portable ultrasonic humidifier with digital controlling panel, you can adjust humidifying capacity and operation time as your desire
04
Strong anti-interference: Industrial grade waterproof, dustproof and anti-interference.Waterproof fog-blowing fan can blow out mist evenly.The temperature detection sensor probe resistant to high temperature and high humidity
Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
| Specification | Unit | RYJS-12D |
|---|---|---|
| Power Supply | V/Hz | 220/1ph/50 |
| Humidification Capacity | kg/h | 12 |
| Rated Power | kW | 0.655 |
| Adjustable Humidity Range | RH % | 10-95 |
| Fog Outlet Diameter | mm | 110*2 |
| Timer Function | — | 24-hour timed on/off |
| Control Method | — | Humidity automatic control |
| Dimensions | mm | 509*385*306 |
| Machine Weight | kg | 22.5 |
TECHNOLOGY COMPARISON
Refrigerant versus desiccant rotor technology
The RYJS-12D on this page is a Ultrasonic Humidifier unit; compare its published ratings in the specification table with the working principles below.
| Technology route | How it works | Typical applications |
|---|---|---|
| Refrigerant dehumidification | Cools air below dew point to condense and separate water vapor | Conventional dehumidification duty in commercial and industrial spaces |
| Desiccant rotor dehumidification | Adsorbs moisture onto a rotating wheel and regenerates it continuously | Lower-temperature or lower-humidity targets in storage and process environments |
| Ultrasonic humidification | Adds fine water mist to raise or compensate relative humidity | Humidity compensation in agriculture and process areas |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Healthcare
- 02Manufacturing
- 03Agriculture
- 04Food
- 05Printing
- 06Museums and Art Galleries
- 07Woodworking
- 08Textile
- 09Warehouses and storage
- 10Hospitality
Compare the range
Other Ultrasonic Humidifier models
SELECTION STEPS
How to select the right configuration
- Step 1 — define the operating conditions. Record the temperature range, current and target relative humidity, moisture load, and the volume of the room or enclosure to be protected.
- Step 2 — confirm the site constraints. Check the available power supply, drainage method, airflow or static-pressure requirement, and installation space; for ceiling, cabinet, or portable mounting confirm the fixing method and service access.
- Step 3 — review the rated data and confirm the configuration. Compare the rated capacity in l/24h and the surrounding specification values in the table against the recorded conditions, then confirm the configuration with Yakeclimate before ordering.
FAQ
Frequently Asked Questions
Is the RYJS-12D capacity rating based on standard testing conditions?
Rated capacity is published under the named condition in the specification table (for example 30°C/80% RH, in l/24h). Actual moisture removal depends on operating temperature, humidity, airflow, and installation conditions.
Which applications can the RYJS-12D support?
The applications listed on this page are evaluation starting points. Final suitability depends on the moisture load, temperature, airflow, and installation limits of the project.
How does Yakeclimate support project configuration?
We co-develop application-specific dehumidification equipment around the operating conditions, interfaces, and integration requirements of the wider project or system.
Project support
Confirm the right configuration for your operating conditions.
Share the operating temperature, current and target humidity, room dimensions, airflow, power supply, drainage method, and installation limits. Yakeclimate can use these details to recommend a suitable next step.
