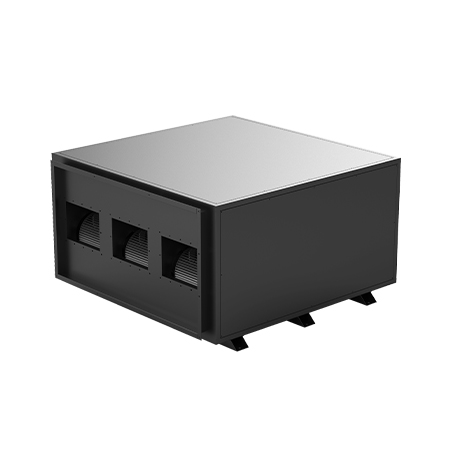

Ceiling Dehumidifier
RYDZ-30S
Ceiling Dehumidifier – 720L per 24hr refrigerant dehumidifier
RYDZ-30S is a ceiling dehumidifier with a rated output of 720 l/24h and an airflow reference of 7400 m³/h, intended for commercial and industrial spaces where ceiling installation preserves floor area. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
- Dehumidification Capacity
- 720 l/24h
- Air Volume
- 7400 m³/h
- Power Supply
- 380/3ph/50 V/Hz
- Applicable Temperature
- 5-38 °C
RYDZ-30S
Product selection should be confirmed against temperature, target humidity, airflow, drainage, power supply, and installation conditions.
Product overview
What RYDZ-30S is designed to do
RYDZ-30S is a ceiling dehumidifier with a rated output of 720 l/24h and an airflow reference of 7400 m³/h, intended for commercial and industrial spaces where ceiling installation preserves floor area. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
01
Automatic dehumidification mode
02
High efficiency dehumidification capacity with branded compressor
03
Intelligent controller panel & remote control
04
Strong copper motor with high air volume
05
Automatic drainage function
06
High durability metal shell
07
Timer on/off function
08
Ceiling installation saves floor space
Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
| Specification | Unit | RYDZ-30S |
|---|---|---|
| Power Supply | V/Hz | 380/3ph/50 |
| Dehumidification Capacity(30°C/80% RH) | l/24h | 720 |
| Maximum Power | kW | 12 |
| Input Current | A | 18 |
| Air Volume | m³/h | 7400 |
| External Pressure | Pa | 200 |
| Filtration Device | — | Primary Efficiency |
| Applicable Temperature | °C | 5-38 |
| Drainage Method | — | External Hose Drainage |
| Control Method | — | 86*86 Box Controller |
| Refrigerant | — | R22/R410A |
| Noise Level | dB(A) | ≤75 |
| Return Air Outlet Diameter | mm | 1234*654 |
| Supply Air Outlet Diameter | mm | 1234*654 |
| Machine Dimensions | mm | 1510*1500*800 |
| Net Weight | kg | 330 |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Agriculture
- 02Buildings and commercial spaces
- 03Data centres and telecoms
- 04Food and beverage
- 05General industry and production
- 06Leisure and recreation
- 07Museum and gallery preservation
- 08Pharmaceutical and scientific
- 09Storage, preservation and archives
Compare the range
Other Ceiling Dehumidifier models
RYDZ-7S Ceiling Dehumidifier – 168L per 24hr refrigerant dehumidifier
168 l/24h
RYDZ-10S Ceiling Dehumidifier – 240L per 24hr refrigerant dehumidifier
240 l/24h
RYDZ-12S Ceiling Dehumidifier – 288L per 24hr refrigerant dehumidifier
288 l/24h
RYDZ-22S Ceiling Dehumidifier – 480L per 24hr refrigerant dehumidifier
480 l/24h Project support
Confirm the right configuration for your operating conditions.
Share the operating temperature, current and target humidity, room dimensions, airflow, power supply, drainage method, and installation limits. Yakeclimate can use these details to recommend a suitable next step.
Send project requirements
