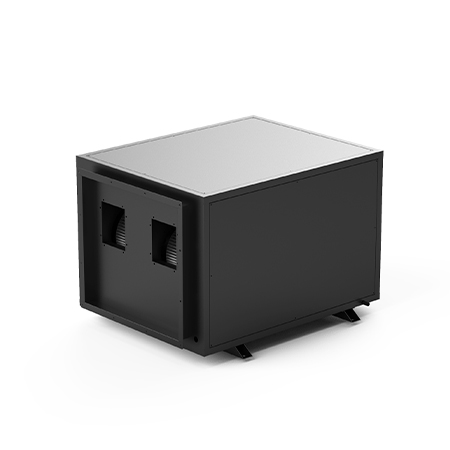

Ceiling Dehumidifier
RYDZ-10S
Ceiling Dehumidifier – 240L per 24hr refrigerant dehumidifier
RYDZ-10S removes 240 L of water a day at 30°C/80% RH, with 2,500 m³/h airflow and a 380 V 3-phase supply.
- Dehumidification Capacity
- 240 L/day
- Airflow
- 2500 m³/h
- Power Supply
- 380 V / 3-phase / 50 Hz
- Applicable Temperature
- 5-38 °C
RYDZ-10S
An industrial dehumidifier is a humidity-control device that removes water vapor from ambient or process air and holds relative humidity at a defined operating level.
Product overview
What RYDZ-10S is designed to do
RYDZ-10S removes 240 L of water a day at 30°C/80% RH, with 2,500 m³/h airflow and a 380 V 3-phase supply.
01
Automatic dehumidification mode
02
Compressor from an established brand (e.g. Panasonic, by model)
03
Intelligent controller panel & remote control
04
Copper-wound fan motor for high airflow
05
Automatic drainage function
06
Durable metal housing
07
Timer on/off function
08
Ceiling installation saves floor space
Technical data
Product specifications
| Specification | Unit | RYDZ-10S |
|---|---|---|
| Power Supply | — | 380 V / 3-phase / 50 Hz |
| Dehumidification Capacity(30°C/80% RH) | L/day | 240 |
| Maximum Power | kW | 4.25 |
| Input Current | A | 6.5 |
| Airflow | m³/h | 2500 |
| External Pressure | Pa | 100 |
| Filtration Device | — | Primary Efficiency |
| Applicable Temperature | °C | 5-38 |
| Drainage Method | — | External Hose Drainage |
| Control Method | — | 86*86 Box Controller |
| Refrigerant | — | R22/R410A |
| Noise Level | dB(A) | ≤65 |
| Return Air Outlet Diameter | mm | 540*430 |
| Supply Air Outlet Diameter | mm | 540*430 |
| Machine Dimensions | mm | 1050*700*700 |
| Net Weight | kg | 110 |
TECHNOLOGY COMPARISON
Refrigerant versus desiccant rotor technology
The RYDZ-10S on this page is a Ceiling Dehumidifier unit; compare its published ratings in the specification table with the working principles below.
| Technology route | How it works | Typical applications |
|---|---|---|
| Refrigerant dehumidification | Cools air below dew point to condense and separate water vapor | Conventional dehumidification duty in commercial and industrial spaces |
| Desiccant rotor dehumidification | Adsorbs moisture onto a rotating wheel and regenerates it continuously | Lower-temperature or lower-humidity targets in storage and process environments |
| Ultrasonic humidification | Adds fine water mist to raise or compensate relative humidity | Humidity compensation in agriculture and process areas |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Agriculture
- 02Buildings and commercial spaces
- 03Data centres and telecoms
- 04Food and beverage
- 05General industry and production
- 06Leisure and recreation
- 07Museum and gallery preservation
- 08Pharmaceutical and scientific
- 09Storage, preservation and archives
Compare the range
Other Ceiling Dehumidifier models
RYDZ-7S Ceiling Dehumidifier – 168L per 24hr refrigerant dehumidifier
168 L/day
RYDZ-12S Ceiling Dehumidifier – 288L per 24hr refrigerant dehumidifier
288 L/day
RYDZ-22S Ceiling Dehumidifier – 480L per 24hr refrigerant dehumidifier
480 L/day
RYDZ-26DM Ceiling Dehumidifier – 26L per 24hr refrigerant dehumidifier
26 L/day
RYDZ-30S Ceiling Dehumidifier – 720L per 24hr refrigerant dehumidifier
720 L/day
RYDZ-40S Ceiling Dehumidifier – 960L per 24hr refrigerant dehumidifier
960 L/day
RYDZ-58DM Ceiling Dehumidifier – 58L per 24hr refrigerant dehumidifier
58 L/day RYDZ-90DM Ceiling Dehumidifier – 90L per 24hr refrigerant dehumidifier
90 L/day RYDZ-138DM Ceiling Dehumidifier – 138L per 24hr refrigerant dehumidifier
138 L/day SELECTION STEPS
How to select the right configuration
- Step 1 — define the operating conditions. Record the temperature range, current and target relative humidity, moisture load, and the volume of the room or enclosure to be protected.
- Step 2 — confirm the site constraints. Check the available power supply, drainage method, airflow or static-pressure requirement, and installation space; for ceiling, cabinet, or portable mounting confirm the fixing method and service access.
- Step 3 — review the rated data and confirm the configuration. Compare the rated capacity in L/day and the surrounding specification values in the table against the recorded conditions, then confirm the configuration with Yakeclimate before ordering.
Product definition and technical notes
What is an industrial dehumidifier?
An industrial dehumidifier is a humidity-control device that removes water vapor from ambient or process air and holds relative humidity at a defined operating level. Industrial models are specified against the operating temperature, target humidity, airflow, drainage, and power supply of a project rather than by floor area alone.
RYDZ-10S is a Ceiling Dehumidifier unit with a published rated capacity of 240 L/day on this page.
Company record behind this product
Since 2010, Yakeclimate has supplied customers in 50+ countries and regions, and holds 46+ patents supporting product and application development alongside a national-level laboratory. The specification values on this page are published from the current product record and reviewed against project conditions before quotation.
FAQ
Frequently Asked Questions
Is the RYDZ-10S capacity rating based on standard testing conditions?
Rated capacity is published under the named condition in the specification table (for example 30°C/80% RH, in L/day). Actual moisture removal depends on operating temperature, humidity, airflow, and installation conditions.
Which applications can the RYDZ-10S support?
The applications listed on this page are evaluation starting points. Final suitability depends on the moisture load, temperature, airflow, and installation limits of the project.
