Energy storage refrigerant dehumidifier – 10 L/24h

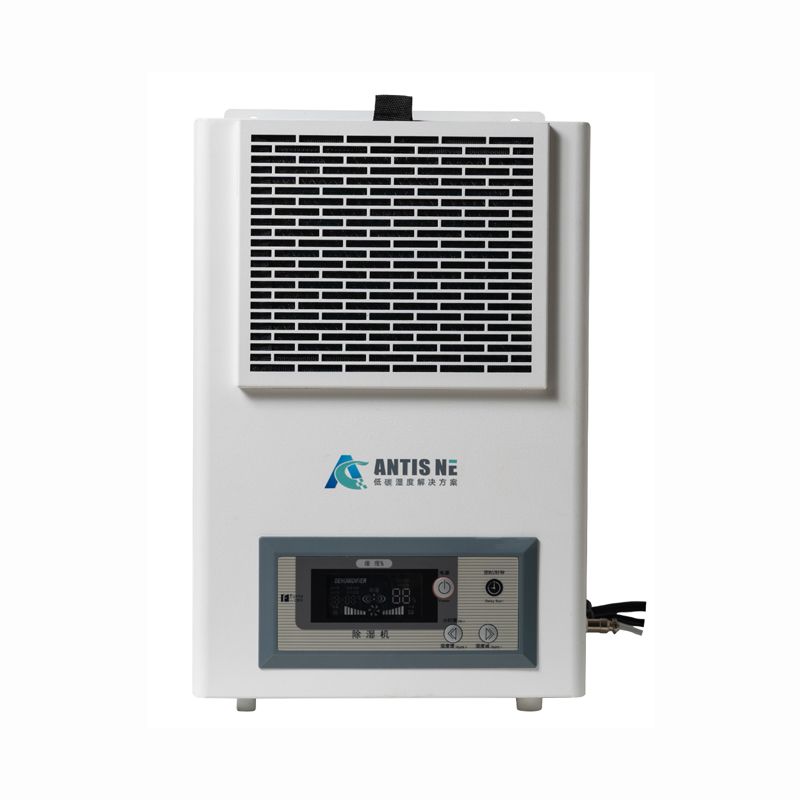

ADS-10D is a compact dehumidifier for battery cabinets, electrical enclosures and energy-storage equipment. Its published removal rating is 10 L/24h at 30 °C and 80% RH; final selection should be confirmed against the actual temperature, humidity or dew-point target, moisture load, drainage, power, control and installation conditions.
Product selection should be confirmed against temperature, target humidity, airflow, drainage, power supply, and installation conditions.
DEFINITION
What is an industrial dehumidifier?
An industrial dehumidifier is a humidity-control device that removes water vapor from ambient or process air and holds relative humidity at a defined operating level. Industrial models are specified against the operating temperature, target humidity, airflow, drainage, and power supply of a project rather than by floor area alone.
ADS-10D is a Energy Storage Dehumidifier unit with a published rated capacity of 10 L/24h on this page.
Yakeclimate designs and manufactures industrial dehumidification equipment for complex climate applications, with a focus on agriculture and energy projects.
Product overview
What ADS-10D is designed to do
ADS-10D is a compact dehumidifier for battery cabinets, electrical enclosures and energy-storage equipment. Its published removal rating is 10 L/24h at 30 °C and 80% RH; final selection should be confirmed against the actual temperature, humidity or dew-point target, moisture load, drainage, power, control and installation conditions.
01
10 L/24h rated moisture removal at 30 °C and 80% RH
02
Compact wall-mounted form for cabinets and container installations
03
R134A refrigerant system with primary filtration
04
RS485 communication and external steel-wire hose drainage
05
Published temperature range from 5 °C to 40 °C
Included accessories
External drainage hose
Product video

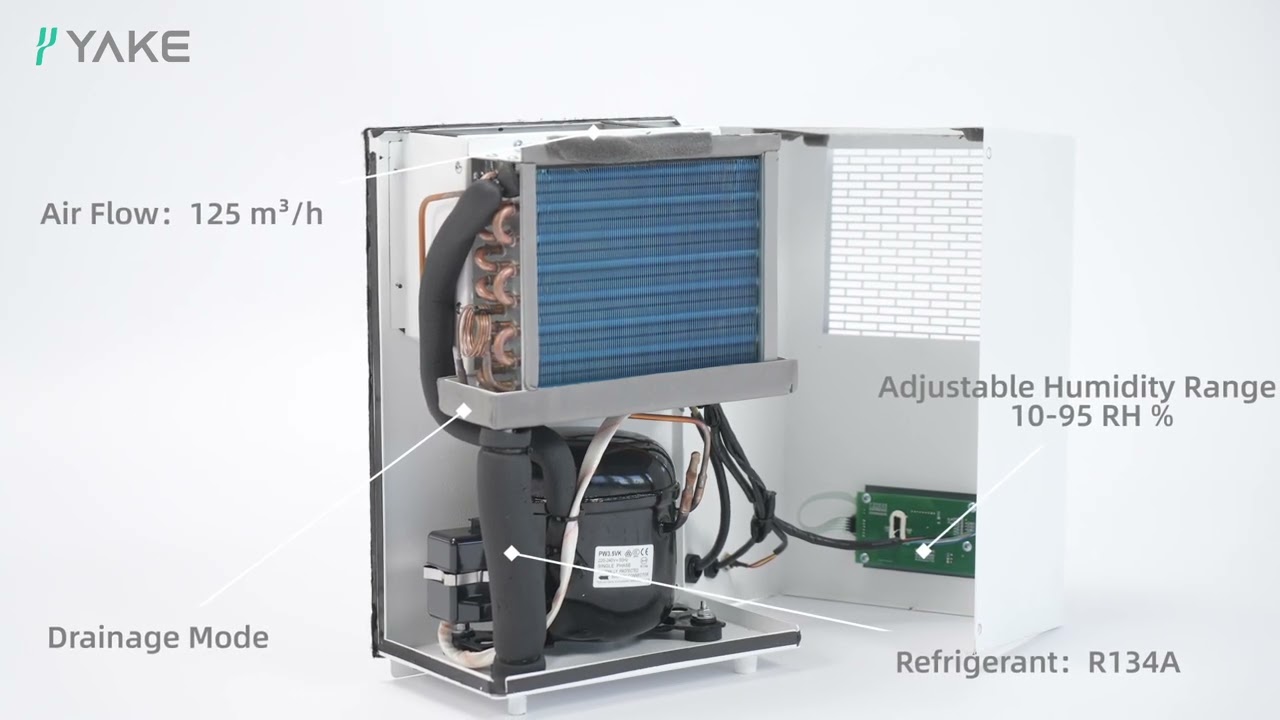

See ADS-10D in detail
Review the equipment form, exterior layout, and product details in this short video before confirming selection and integration requirements for your project.
Full HD 1080p00:38
Watch on YouTube ↗ This video presents the equipment itself. Final model selection and configuration still depend on operating conditions and project requirements.
Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
Specification
Unit
ADS-10D
Dehumidification Capacity (30°C/80% RH)
L/24h
10
Power Supply
V/Hz
AC 220V 50Hz
Rated Power
W
185
Maximum Power
W
260
Rated Current
A
0.84
Airflow
m³/h
100
Refrigerant
—
R134A
Filter
—
Primary filtration
Communication
—
RS485
Drainage Method
—
External steel-wire hose
Operating Temperature
°C
5–40
Humidity Control Range
% RH
10–95
Machine Dimensions (L×W×H)
mm
270 × 190 × 395
Net Weight
kg
12
TECHNOLOGY COMPARISON
Refrigerant versus desiccant rotor technology
The ADS-10D on this page is a Energy Storage Dehumidifier unit; compare its published ratings in the specification table with the working principles below.
Technology route
How it works
Typical applications
Refrigerant dehumidification
Cools air below dew point to condense and separate water vapor
Conventional dehumidification duty in commercial and industrial spaces
Desiccant rotor dehumidification
Adsorbs moisture onto a rotating wheel and regenerates it continuously
Lower-temperature or lower-humidity targets in storage and process environments
Ultrasonic humidification
Adds fine water mist to raise or compensate relative humidity
Humidity compensation in agriculture and process areas
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
Step 1 — define the operating conditions. Record the temperature range, current and target relative humidity, moisture load, and the volume of the room or enclosure to be protected.
Step 2 — confirm the site constraints. Check the available power supply, drainage method, airflow or static-pressure requirement, and installation space; for ceiling, cabinet, or portable mounting confirm the fixing method and service access.
Step 3 — review the rated data and confirm the configuration. Compare the rated capacity in l/24h and the surrounding specification values in the table against the recorded conditions, then confirm the configuration with Yakeclimate before ordering.
FAQ
Frequently Asked Questions
Is the ADS-10D capacity rating based on standard testing conditions?
Rated capacity is published under the named condition in the specification table (for example 30°C/80% RH, in l/24h). Actual moisture removal depends on operating temperature, humidity, airflow, and installation conditions.
Which applications can the ADS-10D support?
The applications listed on this page are evaluation starting points. Final suitability depends on the moisture load, temperature, airflow, and installation limits of the project.
How does Yakeclimate support project configuration?
We co-develop application-specific dehumidification equipment around the operating conditions, interfaces, and integration requirements of the wider project or system.
Project support
Confirm the right configuration for your operating conditions.
Share the operating temperature, current and target humidity, room dimensions, airflow, power supply, drainage method, and installation limits. Yakeclimate can use these details to recommend a suitable next step.
