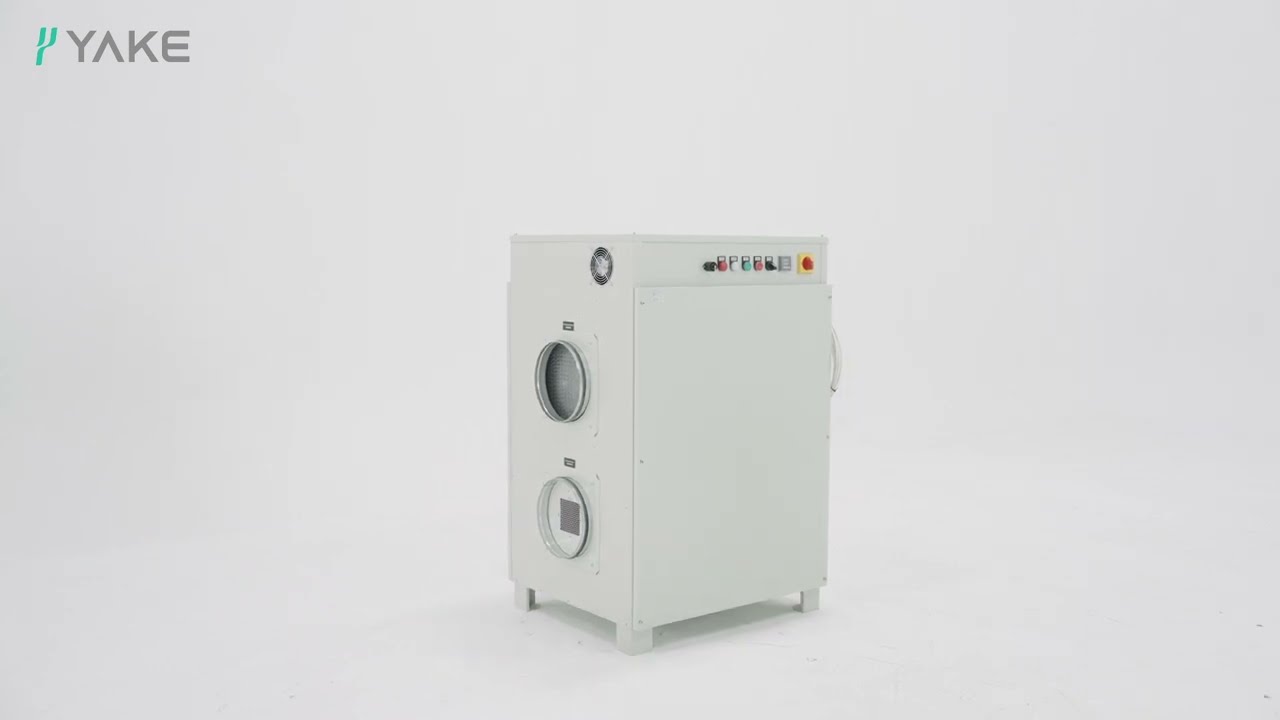

Desiccant Rotor Dehumidifier
RY-1500M
Desiccant Dehumidifier – 1500m³/h airflow rotary dehumidifier
RY-1500M is a desiccant rotor dehumidifier with a rated output of 240 l/24h and an airflow reference of 1550 m³/h, intended for low-temperature or lower-humidity industrial processes that require desiccant moisture control. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
- Dehumidification Capacity
- 240 l/24h
- Process Airflow
- 1550 m³/h
- Power Supply
- 380/3ph/50 V/Hz
- Applicable Temperature
- -10~+55 °C
RY-1500M
Product selection should be confirmed against temperature, target humidity, airflow, drainage, power supply, and installation conditions.
DEFINITION
What is an industrial dehumidifier?
An industrial dehumidifier is a humidity-control device that removes water vapor from ambient or process air and holds relative humidity at a defined operating level. Industrial models are specified against the operating temperature, target humidity, airflow, drainage, and power supply of a project rather than by floor area alone.
RY-1500M is a Desiccant Rotor Dehumidifier unit with a published rated capacity of 240 l/24h on this page.
Yakeclimate designs and manufactures industrial dehumidification equipment for complex climate applications, with a focus on agriculture and energy projects.
Product overview
What RY-1500M is designed to do
RY-1500M is a desiccant rotor dehumidifier with a rated output of 240 l/24h and an airflow reference of 1550 m³/h, intended for low-temperature or lower-humidity industrial processes that require desiccant moisture control. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
01
Top-tier international brand from Sweden, Proflute rotor wheel offers a 10-year lifespan and consistent dehumidification performance
02
SCR temperature control technology for more stable operation
03
High-efficiency dehumidification at low dew point with a wider range of dehumidification coverage
04
The latest PTC thermistor reduces the hazardous distance of heat radiation, improves regeneration heating efficiency, and achieves significant energy-saving effects
05
The rotation protection function effectively monitors the operation of the dehumidification wheel, ensuring the proper functioning of the equipment
06
The intelligent control system will automatically and accurately regulate the humidity according to the set target humidity level
07
Sturdy rust-resistant steel housing suitable for various complex operating environments
08
The high airflow design suitable for large indoor spaces.
Product video
See RY-1500M in detail
Review the equipment form, exterior layout, and product details in this short video before confirming selection and integration requirements for your project.
Watch on YouTube This video presents the equipment itself. Final model selection and configuration still depend on operating conditions and project requirements.Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
| Specification | Unit | RY-1500M |
|---|---|---|
| Power Supply | V/Hz | 380/3ph/50 |
| Dehumidification Capacity(20°C/60% RH) | l/24h | 240 |
| Rated Power | kW | 15 |
| Rated Current | A | 26 |
| Process Airflow | m³/h | 1550 |
| Reactivation Airflow | m³/h | 580 |
| Process Air Inlet Diameter | mm | 250*2 |
| Reactivation Air Inlet Diameter | mm | 160*2 |
| Applicable Temperature | °C | -10~+55 |
| Machine Dimensions | mm | 880*678*1238 |
| Package Dimensions | mm | 998*800*1410 |
| Net Weight | kg | 180 |
| Gross Weight | kg | 202 |
TECHNOLOGY COMPARISON
Refrigerant versus desiccant rotor technology
The RY-1500M on this page is a Desiccant Rotor Dehumidifier unit; compare its published ratings in the specification table with the working principles below.
| Technology route | How it works | Typical applications |
|---|---|---|
| Refrigerant dehumidification | Cools air below dew point to condense and separate water vapor | Conventional dehumidification duty in commercial and industrial spaces |
| Desiccant rotor dehumidification | Adsorbs moisture onto a rotating wheel and regenerates it continuously | Lower-temperature or lower-humidity targets in storage and process environments |
| Ultrasonic humidification | Adds fine water mist to raise or compensate relative humidity | Humidity compensation in agriculture and process areas |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Agriculture
- 02Buildings and commercial spaces
- 03Data centres and telecoms
- 04Food and beverage
- 05General industry and production
- 06Leisure and recreation
- 07Museum and gallery preservation
- 08Pharmaceutical and scientific
- 09Storage, preservation and archives
- 10Water damage restoration
- 11Waterworks
Compare the range
Other Desiccant Rotor Dehumidifier models
RY-100M Desiccant Dehumidifier – 100m³/h airflow rotary dehumidifier
12 l/24h RY-200M Desiccant Dehumidifier – 200m³/h airflow rotary dehumidifier
15 l/24h
RY-300M Desiccant Dehumidifier – 300m³/h airflow rotary dehumidifier
48 l/24h
RY-600M Desiccant Dehumidifier – 600m³/h airflow rotary dehumidifier
72 l/24h SELECTION STEPS
How to select the right configuration
- Step 1 — define the operating conditions. Record the temperature range, current and target relative humidity, moisture load, and the volume of the room or enclosure to be protected.
- Step 2 — confirm the site constraints. Check the available power supply, drainage method, airflow or static-pressure requirement, and installation space; for ceiling, cabinet, or portable mounting confirm the fixing method and service access.
- Step 3 — review the rated data and confirm the configuration. Compare the rated capacity in l/24h and the surrounding specification values in the table against the recorded conditions, then confirm the configuration with Yakeclimate before ordering.
FAQ
Frequently Asked Questions
Is the RY-1500M capacity rating based on standard testing conditions?
Rated capacity is published under the named condition in the specification table (for example 30°C/80% RH, in l/24h). Actual moisture removal depends on operating temperature, humidity, airflow, and installation conditions.
Which applications can the RY-1500M support?
The applications listed on this page are evaluation starting points. Final suitability depends on the moisture load, temperature, airflow, and installation limits of the project.
How does Yakeclimate support project configuration?
We co-develop application-specific dehumidification equipment around the operating conditions, interfaces, and integration requirements of the wider project or system.
Project support
Confirm the right configuration for your operating conditions.
Share the operating temperature, current and target humidity, room dimensions, airflow, power supply, drainage method, and installation limits. Yakeclimate can use these details to recommend a suitable next step.
Send project requirements
