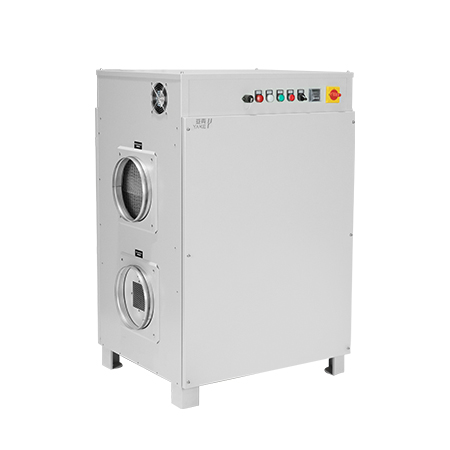

Desiccant Rotor Dehumidifier
RY-1000M
Desiccant Dehumidifier – 1000m³/h airflow rotary dehumidifier
RY-1000M is a desiccant rotor dehumidifier with a rated output of 180 l/24h and an airflow reference of 110 m³/h, intended for low-temperature or lower-humidity industrial processes that require desiccant moisture control. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
- Dehumidification Capacity
- 180 l/24h
- Process Airflow
- 110 m³/h
- Power Supply
- 380/3ph/50 V/Hz
- Applicable Temperature
- -10~+55 °C
Product selection should be confirmed against temperature, target humidity, airflow, drainage, power supply, and installation conditions.
Product overview
What RY-1000M is designed to do
RY-1000M is a desiccant rotor dehumidifier with a rated output of 180 l/24h and an airflow reference of 110 m³/h, intended for low-temperature or lower-humidity industrial processes that require desiccant moisture control. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
Top-tier international brand from Sweden, Proflute rotor wheel offers a 10-year lifespan and consistent dehumidification performance
SCR temperature control technology for more stable operation
High-efficiency dehumidification at low dew point with a wider range of dehumidification coverage
The latest PTC thermistor reduces the hazardous distance of heat radiation, improves regeneration heating efficiency, and achieves significant energy-saving effects
The rotation protection function effectively monitors the operation of the dehumidification wheel, ensuring the proper functioning of the equipment
The intelligent control system will automatically and accurately regulate the humidity according to the set target humidity level
Sturdy rust-resistant steel housing suitable for various complex operating environments
The high airflow design suitable for large indoor spaces
Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
| Specification | Unit | RY-1000M |
|---|---|---|
| Power Supply | V/Hz | 380/3ph/50 |
| Dehumidification Capacity(20°C/60% RH) | l/24h | 180 |
| Rated Power | kW | 11 |
| Rated Current | A | 18 |
| Process Airflow | m³/h | 110 |
| Reactivation Airflow | m³/h | 400 |
| Process Air Inlet Diameter | mm | 200*2 |
| Reactivation Air Inlet Diameter | mm | 150*2 |
| Applicable Temperature | °C | -10~+55 |
| Machine Dimensions | mm | 875*640*1232 |
| Package Dimensions | mm | 998*800*1410 |
| Net Weight | kg | 160 |
| Gross Weight | kg | 171 |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Agriculture
- 02Buildings and commercial spaces
- 03Data centres and telecoms
- 04Food and beverage
- 05General industry and production
- 06Leisure and recreation
- 07Museum and gallery preservation
- 08Pharmaceutical and scientific
- 09Storage, preservation and archives
- 10Water damage restoration
- 11Waterworks
Compare the range
Other Desiccant Rotor Dehumidifier models
Project support
Confirm the right configuration for your operating conditions.
Share the operating temperature, current and target humidity, room dimensions, airflow, power supply, drainage method, and installation limits. Yakeclimate can use these details to recommend a suitable next step.
Send project requirements
