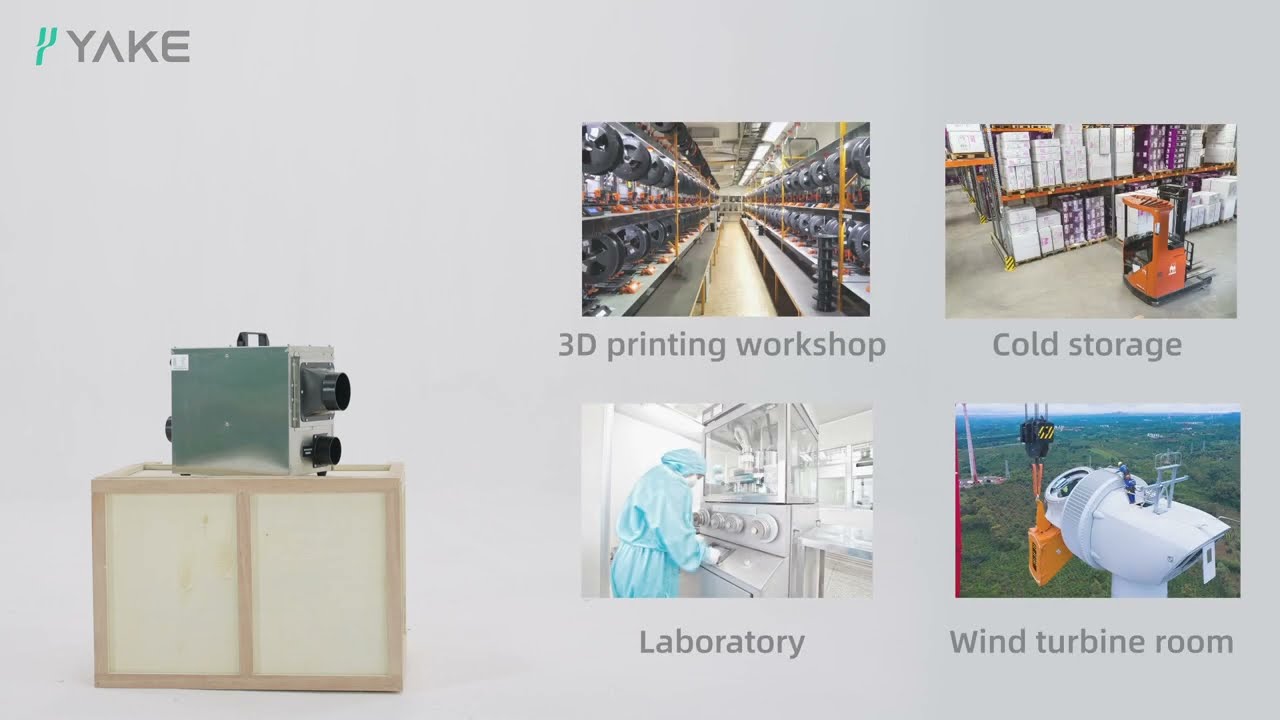

Desiccant Rotor Dehumidifier
RY-100M
Desiccant Dehumidifier – 100m³/h airflow rotary dehumidifier
RY-100M removes 12 L of water a day at 20°C/60% RH, with 93 m³/h airflow and a 220 V 1-phase supply.
- Dehumidification Capacity
- 12 L/day
- Process Airflow
- 93 m³/h
- Power Supply
- 220 V / 1-phase / 50 Hz
- Applicable Temperature
- -10~+55 °C
RY-100M
An industrial dehumidifier is a humidity-control device that removes water vapor from ambient or process air and holds relative humidity at a defined operating level.
Product overview
What RY-100M is designed to do
RY-100M removes 12 L of water a day at 20°C/60% RH, with 93 m³/h airflow and a 220 V 1-phase supply.
01
The Proflute rotor wheel, from a top-tier international brand in Sweden, offers a 10-year lifespan and consistent dehumidification performance
02
SCR temperature control technology for more stable operation
03
High-efficiency dehumidification at low dew point with a wider range of dehumidification coverage
04
The latest PTC thermistor reduces the hazardous distance of heat radiation, improves regeneration heating efficiency, and achieves significant energy-saving effects
05
The rotation protection function effectively monitors the operation of the dehumidification wheel, ensuring the proper functioning of the equipment
06
The intelligent control system will automatically and accurately regulate the humidity according to the set target humidity level
07
Sturdy rust-resistant steel housing suitable for various complex operating environments
08
The compact size is designed to fit narrow pipes and spaces, making installation easier
Product video
See RY-100M in detail
Review the equipment form, exterior layout, and product details in this short video before confirming selection and integration requirements for your project.
Watch on YouTube This video presents the equipment itself.Technical data
Product specifications
| Specification | Unit | RY-100M |
|---|---|---|
| Power Supply | — | 220 V / 1-phase / 50 Hz |
| Dehumidification Capacity(20°C/60% RH) | L/day | 12 |
| Rated Power | kW | 0.69 |
| Rated Current | A | 3.1 |
| Process Airflow | m³/h | 93 |
| Reactivation Airflow | m³/h | 30 |
| Process Air Inlet Diameter | mm | 100*1 |
| Reactivation Air Inlet Diameter | mm | 75*1 |
| Applicable Temperature | °C | -10~+55 |
| Machine Dimensions | mm | 446*261*373 |
| Package Dimensions | mm | 610*433*573 |
| Net Weight | kg | 12.5 |
| Gross Weight | kg | 21.2 |
TECHNOLOGY COMPARISON
Refrigerant versus desiccant rotor technology
The RY-100M on this page is a Desiccant Rotor Dehumidifier unit; compare its published ratings in the specification table with the working principles below.
| Technology route | How it works | Typical applications |
|---|---|---|
| Refrigerant dehumidification | Cools air below dew point to condense and separate water vapor | Conventional dehumidification duty in commercial and industrial spaces |
| Desiccant rotor dehumidification | Adsorbs moisture onto a rotating wheel and regenerates it continuously | Lower-temperature or lower-humidity targets in storage and process environments |
| Ultrasonic humidification | Adds fine water mist to raise or compensate relative humidity | Humidity compensation in agriculture and process areas |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Agriculture
- 02Buildings and commercial spaces
- 03Data centres and telecoms
- 04Food and beverage
- 05General industry and production
- 06Leisure and recreation
- 07Museum and gallery preservation
- 08Pharmaceutical and scientific
- 09Storage, preservation and archives
- 10Water damage restoration
- 11Waterworks
Compare the range
Other Desiccant Rotor Dehumidifier models
RY-200M Desiccant Dehumidifier – 200m³/h airflow rotary dehumidifier
15 L/day
RY-300M Desiccant Dehumidifier – 300m³/h airflow rotary dehumidifier
48 L/day
RY-600M Desiccant Dehumidifier – 600m³/h airflow rotary dehumidifier
72 L/day
RY-750M Desiccant Dehumidifier – 750m³/h airflow rotary dehumidifier
108 L/day
RY-1000M Desiccant Dehumidifier – 1000m³/h airflow rotary dehumidifier
180 L/day RY-1500M Desiccant Dehumidifier – 1500m³/h airflow rotary dehumidifier
240 L/day
RY-3000M Desiccant Dehumidifier – 3000m³/h airflow rotary dehumidifier
456 L/day SELECTION STEPS
How to select the right configuration
- Step 1 — define the operating conditions. Record the temperature range, current and target relative humidity, moisture load, and the volume of the room or enclosure to be protected.
- Step 2 — confirm the site constraints. Check the available power supply, drainage method, airflow or static-pressure requirement, and installation space; for ceiling, cabinet, or portable mounting confirm the fixing method and service access.
- Step 3 — review the rated data and confirm the configuration. Compare the rated capacity in L/day and the surrounding specification values in the table against the recorded conditions, then confirm the configuration with Yakeclimate before ordering.
Product definition and technical notes
What is an industrial dehumidifier?
An industrial dehumidifier is a humidity-control device that removes water vapor from ambient or process air and holds relative humidity at a defined operating level. Industrial models are specified against the operating temperature, target humidity, airflow, drainage, and power supply of a project rather than by floor area alone.
RY-100M is a Desiccant Rotor Dehumidifier unit with a published rated capacity of 12 L/day on this page.
Company record behind this product
Since 2010, Yakeclimate has supplied customers in 50+ countries and regions, and holds 46+ patents supporting product and application development alongside a national-level laboratory. The specification values on this page are published from the current product record and reviewed against project conditions before quotation.
FAQ
Frequently Asked Questions
Is the RY-100M capacity rating based on standard testing conditions?
Rated capacity is published under the named condition in the specification table (for example 30°C/80% RH, in L/day). Actual moisture removal depends on operating temperature, humidity, airflow, and installation conditions.
Which applications can the RY-100M support?
The applications listed on this page are evaluation starting points. Final suitability depends on the moisture load, temperature, airflow, and installation limits of the project.
How does Yakeclimate support project configuration?
Project support
Confirm the right configuration for your operating conditions.
Share the operating temperature, current and target humidity, room dimensions, airflow, power supply, drainage method, and installation limits. Yakeclimate can use these details to recommend a suitable next step.
