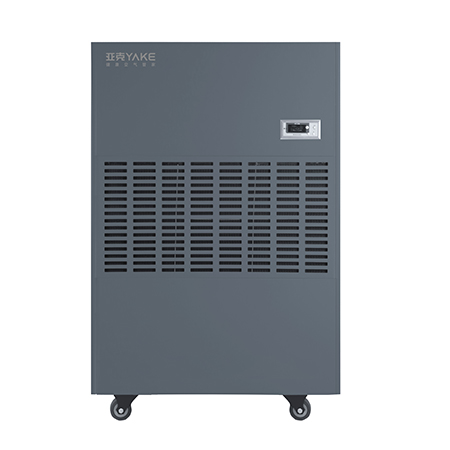

Floor-standing Industrial Dehumidifier
RYCF-22S
Floor Standing Dehumidifier – 480L per 24hr refrigerant dehumidifier
RYCF-22S is a floor-standing industrial dehumidifier with a rated output of 480 l/24h and an airflow reference of 5600 m³/h, intended for industrial rooms, workshops, storage areas, and production environments. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
- Dehumidification Capacity
- 480 l/24h
- Air Flow
- 5600 m³/h
- Power Supply
- 380/3ph/50 V/Hz
- Applicable Temperature
- 5-38 °C
RYCF-22S
Product selection should be confirmed against temperature, target humidity, airflow, drainage, power supply, and installation conditions.
Product overview
What RYCF-22S is designed to do
RYCF-22S is a floor-standing industrial dehumidifier with a rated output of 480 l/24h and an airflow reference of 5600 m³/h, intended for industrial rooms, workshops, storage areas, and production environments. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
01
Automatic dehumidification mode
02
High efficiency dehumidification capacity with branded compressor
03
High condensation efficiency with large evaporator and condenser
04
Strong copper motor with high air volume
05
Automatic drainage function
06
High durability metal shell
07
Timer on/off function
08
Easy to installation
Product video
See RYCF-22S in detail
Review the equipment form, exterior layout, and product details in this short video before confirming selection and integration requirements for your project.
Watch on YouTube This video presents the equipment itself. Final model selection and configuration still depend on operating conditions and project requirements.Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
| Specification | Unit | RYCF-22S |
|---|---|---|
| Power Supply | V/Hz | 380/3ph/50 |
| Dehumidification Capacity(30°C/80% RH) | l/24h | 480 |
| Max Power | kW | 8.4 |
| Max Current | A | 13 |
| Air Flow | m³/h | 5600 |
| Filter Device | — | Primary |
| Adjustable Humidity Range | RH % | 10-95 |
| Refrigerant | — | R22 |
| Drainage Mode | — | External hose |
| Water Tank Capacity | l | None |
| Applicable Temperature | °C | 5-38 |
| Machine Dimensions | mm | 1188*437*1778 |
| Net Weight | kg | 200 |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Agriculture
- 02Buildings and commercial spaces
- 03Data centres and telecoms
- 04Food and beverage
- 05General industry and production
- 06Leisure and recreation
- 07Museum and gallery preservation
- 08Pharmaceutical and scientific
- 09Storage, preservation and archives
- 10Water damage restoration
- 11Waterworks
