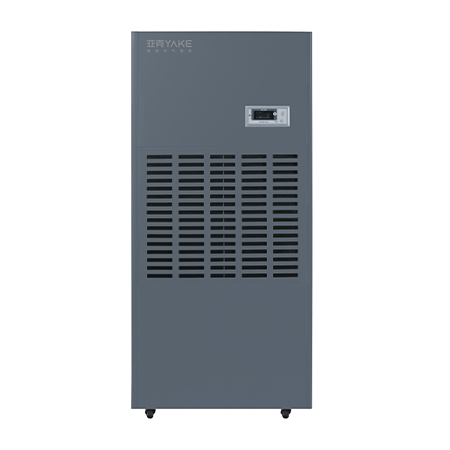

Floor-standing Industrial Dehumidifier
RYCF-10S
Floor Standing Dehumidifier – 240L per 24hr refrigerant dehumidifier
RYCF-10S is a floor-standing industrial dehumidifier with a rated output of 240 l/24h and an airflow reference of 2800 m³/h, intended for industrial rooms, workshops, storage areas, and production environments. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
- Dehumidification Capacity
- 240 l/24h
- Air Flow
- 2800 m³/h
- Power Supply
- 380/3ph/50 V/Hz
- Applicable Temperature
- 5-38 °C
RYCF-10S
Product selection should be confirmed against temperature, target humidity, airflow, drainage, power supply, and installation conditions.
DEFINITION
What is an industrial dehumidifier?
An industrial dehumidifier is a humidity-control device that removes water vapor from ambient or process air and holds relative humidity at a defined operating level. Industrial models are specified against the operating temperature, target humidity, airflow, drainage, and power supply of a project rather than by floor area alone.
RYCF-10S is a Floor-standing Industrial Dehumidifier unit with a published rated capacity of 240 l/24h on this page.
Yakeclimate designs and manufactures industrial dehumidification equipment for complex climate applications, with a focus on agriculture and energy projects.
Product overview
What RYCF-10S is designed to do
RYCF-10S is a floor-standing industrial dehumidifier with a rated output of 240 l/24h and an airflow reference of 2800 m³/h, intended for industrial rooms, workshops, storage areas, and production environments. Use the technical data below as a starting point, then confirm the configuration against the actual temperature, humidity target, drainage, power supply, and installation conditions.
01
Automatic dehumidification mode
02
High efficiency dehumidification capacity with branded compressor
03
High condensation efficiency with large evaporator and condenser
04
Strong copper motor with high air volume
05
Automatic drainage function
06
High durability metal shell
07
Timer on/off function
08
Easy to installation

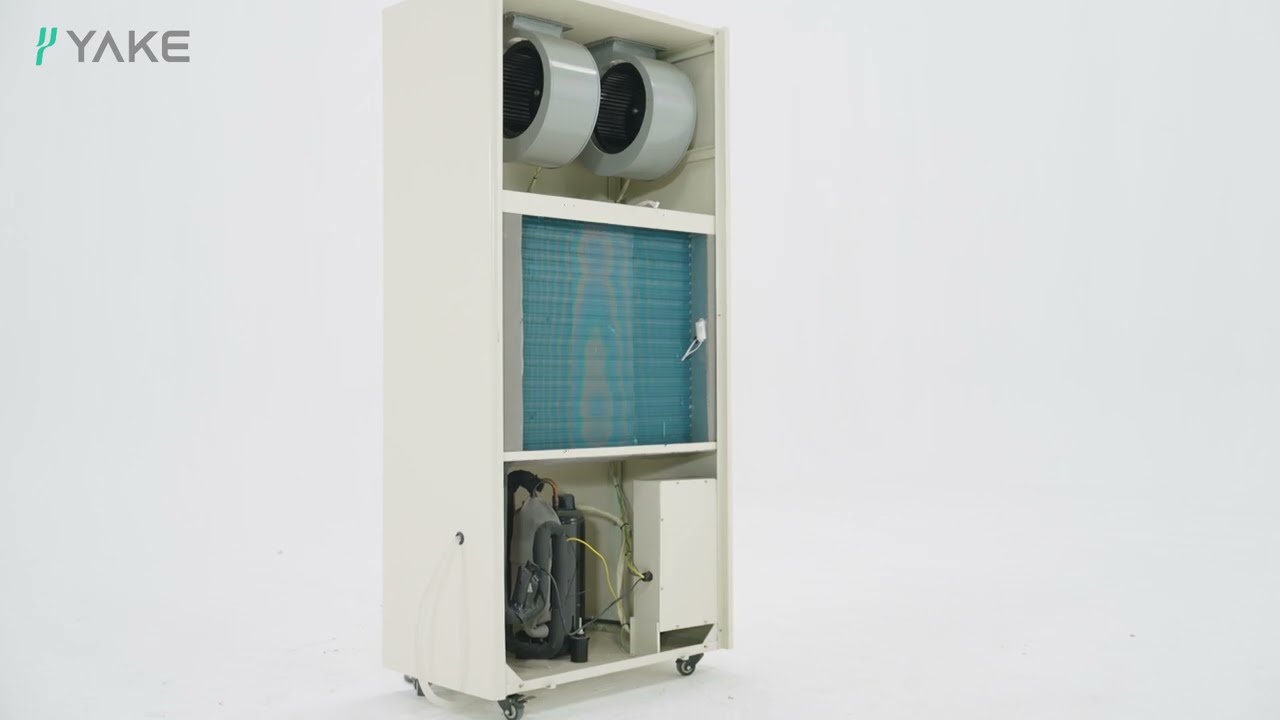

Product video
See RYCF-10S in detail
Review the equipment form, exterior layout, and product details in this short video before confirming selection and integration requirements for your project.
Watch on YouTube This video presents the equipment itself. Final model selection and configuration still depend on operating conditions and project requirements.Technical data
Product specifications
Values below are retained from the current product record. Final configuration should be confirmed in the project quotation.
| Specification | Unit | RYCF-10S |
|---|---|---|
| Power Supply | V/Hz | 380/3ph/50 |
| Dehumidification Capacity(30°C/80% RH) | l/24h | 240 |
| Max Power | kW | 4.25 |
| Max Current | A | 6.5 |
| Air Flow | m³/h | 2800 |
| Filter Device | — | Primary |
| Adjustable Humidity Range | RH % | 10-95 |
| Refrigerant | — | R22 |
| Drainage Mode | — | External hose |
| Water Tank Capacity | l | None |
| Applicable Temperature | °C | 5-38 |
| Machine Dimensions | mm | 773*401*1613 |
| Net Weight | kg | 100 |
TECHNOLOGY COMPARISON
Refrigerant versus desiccant rotor technology
The RYCF-10S on this page is a Floor-standing Industrial Dehumidifier unit; compare its published ratings in the specification table with the working principles below.
| Technology route | How it works | Typical applications |
|---|---|---|
| Refrigerant dehumidification | Cools air below dew point to condense and separate water vapor | Conventional dehumidification duty in commercial and industrial spaces |
| Desiccant rotor dehumidification | Adsorbs moisture onto a rotating wheel and regenerates it continuously | Lower-temperature or lower-humidity targets in storage and process environments |
| Ultrasonic humidification | Adds fine water mist to raise or compensate relative humidity | Humidity compensation in agriculture and process areas |
Application fit
Where this product can be evaluated
Application fit depends on the moisture load, operating temperature, room volume, airflow path, and installation constraints.
- 01Agriculture
- 02Buildings and commercial spaces
- 03Data centres and telecoms
- 04Food and beverage
- 05General industry and production
- 06Leisure and recreation
- 07Museum and gallery preservation
- 08Pharmaceutical and scientific
- 09Storage, preservation and archives
- 10Water damage restoration
- 11Waterworks
Compare the range
Other Floor-standing Industrial Dehumidifier models
RYCF-12S Floor Standing Dehumidifier – 288L per 24hr refrigerant dehumidifier
288 l/24h
RYCF-16S Floor Standing Dehumidifier – 384L per 24hr refrigerant dehumidifier
384 l/24h RYCF-22S Floor Standing Dehumidifier – 480L per 24hr refrigerant dehumidifier
480 l/24h
RYCF-30S Floor Standing Dehumidifier – 720L per 24hr refrigerant dehumidifier
720 l/24h SELECTION STEPS
How to select the right configuration
- Step 1 — define the operating conditions. Record the temperature range, current and target relative humidity, moisture load, and the volume of the room or enclosure to be protected.
- Step 2 — confirm the site constraints. Check the available power supply, drainage method, airflow or static-pressure requirement, and installation space; for ceiling, cabinet, or portable mounting confirm the fixing method and service access.
- Step 3 — review the rated data and confirm the configuration. Compare the rated capacity in l/24h and the surrounding specification values in the table against the recorded conditions, then confirm the configuration with Yakeclimate before ordering.
FAQ
Frequently Asked Questions
Is the RYCF-10S capacity rating based on standard testing conditions?
Rated capacity is published under the named condition in the specification table (for example 30°C/80% RH, in l/24h). Actual moisture removal depends on operating temperature, humidity, airflow, and installation conditions.
Which applications can the RYCF-10S support?
The applications listed on this page are evaluation starting points. Final suitability depends on the moisture load, temperature, airflow, and installation limits of the project.
How does Yakeclimate support project configuration?
We co-develop application-specific dehumidification equipment around the operating conditions, interfaces, and integration requirements of the wider project or system.
Project support
Confirm the right configuration for your operating conditions.
Share the operating temperature, current and target humidity, room dimensions, airflow, power supply, drainage method, and installation limits. Yakeclimate can use these details to recommend a suitable next step.
