Water dripping from a greenhouse roof gutter has several possible origins. Vapor may condense on the gutter's room-facing metal surface. Water may form on the inner roof covering and run into, across, or past a collection channel. Rain may enter through a joint or a blocked drainage route. A drop seen below the gutter identifies the last point of release, not necessarily the first point where water formed. Trace that first point during the event before changing a humidity setting or ordering a gutter repair.

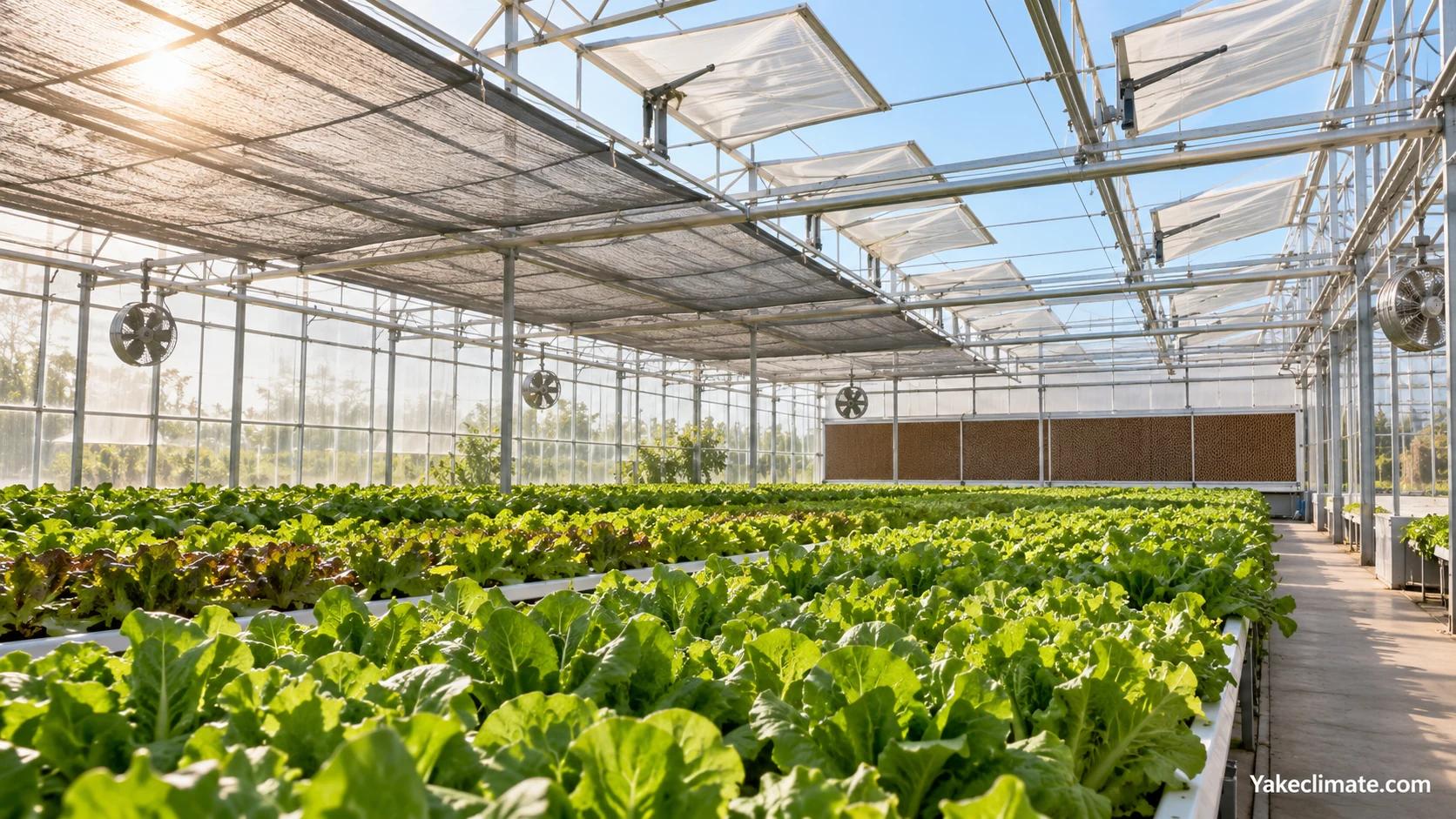

Here, gutter means the roof-valley or eave component that receives roof water in a greenhouse, not a hydroponic crop gutter. The featured image is a conceptual illustration, not a Yakeclimate installation or evidence of the cause at any site.
Identify the gutter and the water route
In a gutter-connected greenhouse, neighboring roof bays meet at an eave or gutter. Some assemblies also have a separate interior condensate collection detail. The visible metal below a roof valley, its rainwater channel, a small condensate channel, and a nearby pipe or screen edge may be different parts with different owners. Confirm the installed drawings and inspect only accessible areas before naming the source. UF/IFAS Extension's physical design guide describes bays connected at an eave or gutter; it does not prescribe the detail in your house.
First mark the affected bay and the exact drip line. From a safe aisle, look at the roof covering above it, the gutter's room-facing underside, its inner lip, visible seams and outlet, and any equipment or thermal curtain directly over the landing point. Note which surface was wet before the next drop appeared. Do not reach into a moving screen, climb onto the structure, open a live electrical enclosure, or disturb a loaded gutter to inspect it.
| First observable water | Working explanation to test | Next observation that can separate paths |
|---|---|---|
| Beads appear on the room-facing underside of a gutter while the roof and channel above remain visibly dry | Local surface condensation is possible | Record local air temperature/RH and gutter-surface temperature at the same time; look for repeated beads along similarly cold exposed sections |
| Water is visible on the inner roof covering before the gutter edge or underside becomes wet | Roof-cover condensate is following or escaping its collection route | Follow the wet line downslope through a support, inner lip, joint and outlet; note the first point where water leaves the intended path |
| The gutter or a seam becomes wet during rain, washdown or a drain backup, without an earlier indoor bead sequence | Liquid entry or overflow is possible | Compare the event with rain and cleaning logs; ask the structure/drainage owner to inspect joint, outlet and downpipe conditions |
| The screen edge or nearby duct is wet before water appears below the gutter | Water may have moved from another component | Record that component's first wet point and operating state; do not assign every overhead drop to the gutter |
These are competing hypotheses, not diagnoses from appearance alone. Two paths can operate at once. A roof cover can condense water while a gutter surface is also below the local dew point. Keep both in the event record until one has been verified or excluded.
Test direct condensation on the gutter surface
Direct condensation becomes plausible when the gutter's room-facing surface is at or below the dew point of the air touching that surface. The relevant air may be above a deployed thermal screen and different from the crop-zone air. Record a local air temperature and RH near the gutter, the gutter surface temperature, and the time and position of the first bead. Compare readings from the same location and period. A central greenhouse RH display measured later cannot reconstruct a cold gutter at dawn.
Surface temperature is only one part of the test. If water is already running down the roof into a seam, a cool gutter does not prove that its underside generated all the water. Photograph the dry-to-wet sequence and compare a similar exposed section without dripping. Repeated first beads on the underside during dry weather strengthen a direct-condensation hypothesis; an unseen roof or joint route remains possible until inspected.
The basic roof mechanism is well established: humid greenhouse air can condense on a cooler inner covering at night, and covering behavior affects whether drops remain or run toward the edge. UF/IFAS Extension discusses that mechanism for greenhouse coverings. It does not provide a universal gutter temperature, humidity target, or film choice for this installation.
Follow water that arrives at the gutter
If the roof covering is wet first, follow the path downslope. Does water enter the intended inner channel? Does it bypass a support, gather on a lip, travel along a member, or spill at a joint before reaching the outlet? Record the location and timing of the first escape, rather than calling the entire event “gutter condensation.” A roof-cover treatment may alter how water sheets along the covering, but it cannot repair a failed joint or outlet and does not remove water vapor from the greenhouse.
Rainwater entry is a separate question. Compare dry nights with rain, wind direction, vent position, roof cleaning and irrigation or mist events. Check whether the same bay becomes wet only when the rainwater channel carries a load or a downpipe backs up. The structure and drainage owner should examine the installed design before any seal, outlet, slope or load-bearing detail is changed. The outside rain gutter and an interior condensate channel may share a visual location while carrying different water.
An institutional Wageningen Plant Research report gives a useful counterexample to guessing from the landing point. In one monitored, lit tomato greenhouse with two screens, its abstract reports drip from the greenhouse cover/gutter and ventilation equipment rather than the screens. It says an added condensation gutter addressed drip below the main gutter in that installation. The full report was unavailable to this review, so that observation is not a general retrofit recommendation or a claim about every screen or gutter.
If water lands on a thermal curtain below the gutter, document both sides before it moves. A wet fabric edge does not establish whether water formed on the fabric or arrived from the roof. The published guide to greenhouse humidity under thermal screens explains the two air zones and vapor routes; the gutter investigation here stays with the first liquid-water source and collection path.
Route the correction to the responsible review
When direct underside condensation is supported, the crop-climate and equipment team can assess the local moisture load, air movement, screen position and available water-removal route. A whole-greenhouse humidity assessment can help define whether ventilation, heating, circulation or mechanical dehumidification has a specific duty. Do not infer that a dehumidifier alone will keep a particular gutter dry without checking the local surface and air condition.
When roof condensate is reaching the gutter but escaping it, the structure or covering supplier should review the installed collection detail. When rainwater enters through a joint or backs up, the structure and drainage owner should review the rainwater path. When water begins at a duct, pipe or curtain, hand that component to its owner. Any proposed condensate channel, insulation, new seal, gutter attachment or changed screen sequence needs site-specific structural, drainage and operating review; this article provides no dimension or installation instruction.
The useful handoff is short: bay and location, a time-stamped first-wet-point sequence, same-time local air and surface readings, roof/gutter/outlet observations, rain and wash events, screen and vent positions, and a photo of where the water lands. State what remains unresolved. That record lets a specialist test a correction without conflating air humidity, roof covering and drainage.
Retest in a comparable event
After an approved change, repeat observations in the same bay during a comparable dry night or rain event, as appropriate. Photograph the same roof face, gutter underside, lip, outlet and landing point before sunrise or operation changes hide the path. Record local air and surface conditions, weather, screen position, and the exact time when water first appears. A dry afternoon, a single lower RH reading, or the disappearance of one drip while another route remains wet is not proof that the original path has been fixed.
FAQ
Frequently asked questions
Is water below a greenhouse gutter always condensation on the gutter?
No. It may have formed on the gutter's room-facing underside, arrived from roof glazing, entered during rain, or traveled from nearby equipment. Find the first wet point and compare the event with weather and the collection route.
Can the gutter be wet when the greenhouse RH display looks acceptable?
Yes. Condensation depends on the temperature of the relevant surface and the dew point of the air touching it. A central or crop-zone sensor may not represent air immediately around a cold gutter, especially above a closed thermal screen. Measure the local condition during the event.
Would adding a condensate gutter solve the drip?
Only a site review can answer that. Wageningen reported that a separate condensation gutter addressed drip below a gutter in one studied greenhouse. The first water source, available drainage route, structural load and installed components must be confirmed before treating that case as a design option.
Will dehumidification fix water at a greenhouse gutter?
It may help with a verified vapor load and local dew-point risk when properly evaluated. It will not seal a rain leak, clear a blocked outlet or redirect liquid already flowing past a collection edge. Separate the air-moisture problem from the liquid-water path before selecting equipment.
Technical sources and next check
- Wageningen Plant Research, Vochtgedrag schermsystemen (2017) — institutional abstract of a measured greenhouse case; the full report was not accessible in this review.
- UF/IFAS Extension, greenhouse design and management — roof-cover condensation and water movement on covering materials.
- UF/IFAS Extension, physical greenhouse design considerations — describes bays connected at an eave or gutter.
For a project review, bring the time-stamped bay record and installed gutter/roof drawings. Yakeclimate can discuss equipment conditions and interfaces after the water source and remaining moisture duty are defined; structural and drainage changes belong to the responsible site and component specialists.
