Thermal Bridge Condensation in a Greenhouse: Test the Cold Junction

A wet line along a greenhouse post, purlin or glazing bar can come from a cold structural connection, but the pattern alone does not prove a thermal bridge. Water may also run down from glazing, enter a joint during rain, or collect at a blocked drain. Find where the water first forms. Then compare the affected room-facing surface with nearby air and with a dry part of the same assembly during the same event. That evidence determines whether the next job belongs to the structure team, the crop-climate team, or both.

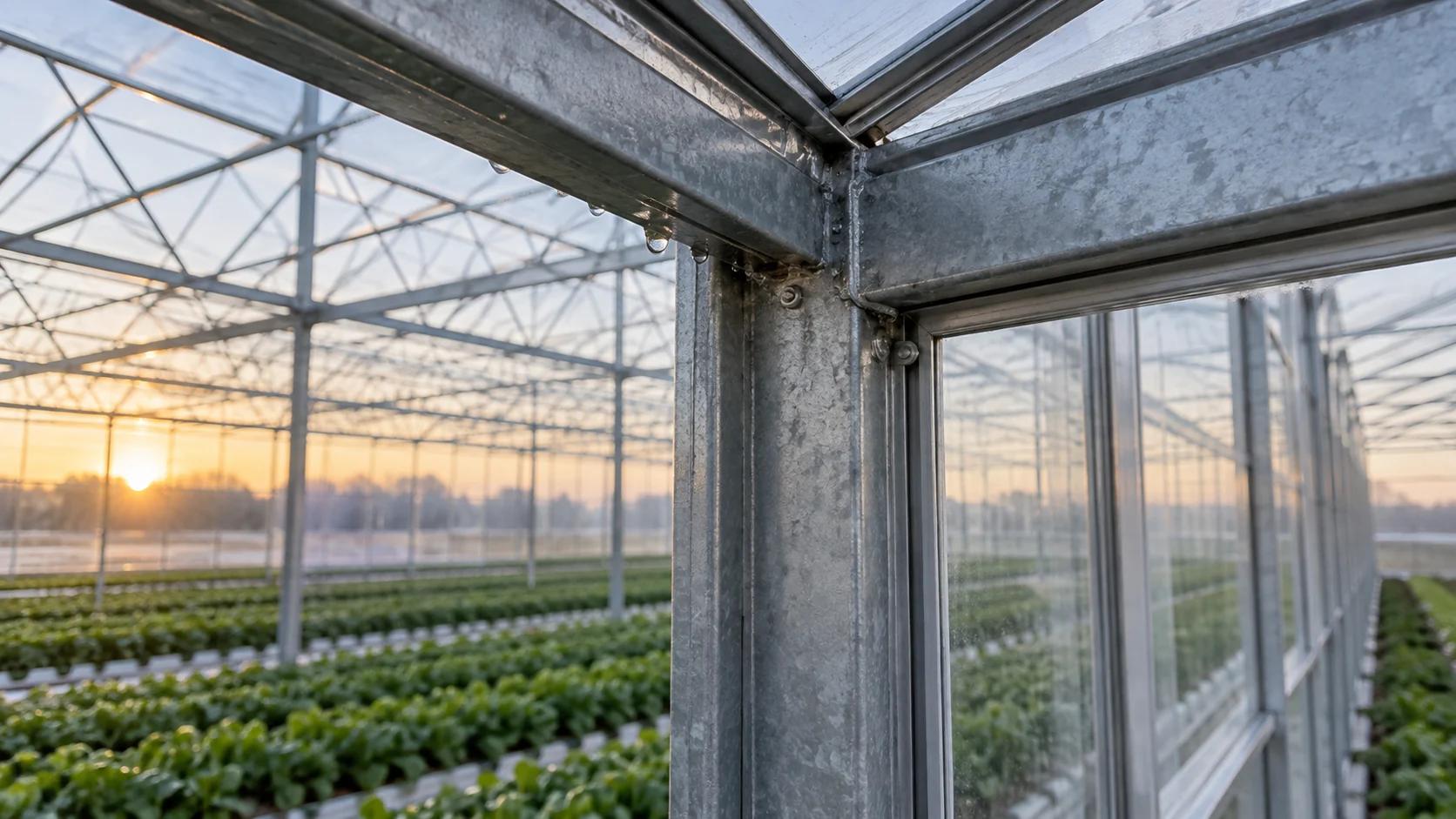

The image above is a conceptual illustration of a possible wet junction, not a Yakeclimate installation or a diagnosis. This article covers fixed frame and enclosure connections. For a whole-house first-wet-surface survey, see the greenhouse condensation guide. The published greenhouse humidity-control guide owns the wider moisture balance and choice of control route.

What makes a junction a thermal bridge?

A thermal bridge is a path through an enclosure that conducts heat more readily than the surrounding assembly. In a greenhouse, a metal post, continuous glazing bar, support bracket or fastener may link an interior surface to a colder exterior part. The room-facing member can then be colder than nearby glazing or cladding even while the central air sensor reports the same greenhouse temperature. A cold member becomes a condensation site only when the air touching it has a dew point at or above that surface temperature.

University of Alaska Fairbanks Extension describes conduction through metal and greenhouse coverings as one route of heat loss. Australian Government building guidance explains how a continuous frame can create a local cold band and surface condensation. The latter explains the physics; its housing code values and material prescriptions are not greenhouse specifications. The installed greenhouse structure, weather exposure and crop operation still need their own review.

Not every metal member is a fault. Greenhouse frames carry loads and may intentionally collect and drain cover condensate. A thermal image or wet stain can point to a location to investigate, but it cannot by itself distinguish a cold conduction path from an air leak, hidden water flow or reflective measurement error.

Map the first water and the connecting materials

Visit during the wet period, before sunlight, ventilation changes or wiping removes the pattern. Mark the first visible wet point at each affected connection, then trace water downward. Photograph the member, adjacent glazing and the space above it. Record rain, irrigation, washing, roof runoff and vent state. A line that starts on the room-facing metal during a dry cold period asks a different question from water appearing under a seal only during wind-driven rain.

Sketch the physical path: which metal, gasket, pane edge, bracket or fastener connects the inside to the outside? Note whether a thermal break, spacer or insulating layer is present in the installed detail, without assuming that a visible strip is continuous or effective. Examine several comparable connections. A repeated pattern at like joints strengthens a junction hypothesis; one isolated wet fitting may point to a local leak or damage.

Water on a pane face or inside a multiwall panel has a different owner. The glazing layer guide separates room-facing droplets, exterior moisture, cavity moisture and joint entry. Neither a cold bar beside a pane nor a wet pane proves the source of water on the other.

Test the cold-junction explanation during the event

Measure air temperature and relative humidity beside the affected surface, then calculate that air's dew point. At the same time, measure the first-wet-point surface and a nearby dry surface that is exposed to similar room air. Record the exact locations, time, instrument and operating state. A surface at or below the adjacent-air dew point makes direct condensation plausible. A warmer reading may mean the water came from elsewhere, or that the coldest moment, coldest point or relevant air layer was missed.

Use a measurement method suitable for the material. Bare reflective metal can produce misleading infrared readings unless emissivity and reflections are handled; a suitable contact measurement can help check a disputed result. Do not compare a night-time wet photo with a surface reading made after sunrise. If an energy screen separates air zones, the central sensor below it may not represent air at a roof connection. If safe access is unavailable, preserve the observation and arrange a qualified inspection rather than reaching into glazing or overhead structure.

A thermal camera can show a cold line relative to surrounding surfaces, but it is a screening tool. Check it against a surface measurement and the actual water path. A cold line without droplets establishes no moisture source. Droplets without a below-dew-point reading at the relevant moment do not establish direct condensation.

Separate the structural correction from the climate correction

If direct condensation is confirmed at a structural connection, ask the greenhouse structure supplier or site engineer to review the full detail: heat-flow path, connection continuity, weather seal, load path, corrosion protection and intended condensate drainage. The U.S. Department of Energy's thermal-bridging guide shows why through-metal attachments can bypass insulation and why correction depends on the whole assembly. It describes multifamily walls, not a greenhouse retrofit instruction. Do not add a pad, wrap a member, drill a drain, block a weep opening or change a structural fastener based on this article.

If the first water came from rain, a failed joint or runoff above, send that route to the cover and structure owner. Drying the air cannot repair liquid entry. If the junction is cold and the air's dew point is high during the same hours, the crop-climate owner can examine moisture generation, heating, ventilation, air distribution and the crop constraints. Warming one local surface and reducing the air dew point address different parts of the condition. Neither should be selected from a single photograph or a universal RH threshold.

Yakeclimate designs and manufactures industrial dehumidification equipment for complex climate applications. Equipment review is appropriate only if a measured remaining vapor-removal duty persists after the water path and operating conditions are understood. The review needs risk-hour air conditions, airflow and interface requirements, available heat and ventilation, condensate handling and crop-climate approval. A dehumidifier cannot restore a missing thermal break, seal a leaking cover or redesign a load-bearing joint.

Retest the same junction and the wider greenhouse

Keep a short event record: inside and outside weather; irrigation, washing and vent state; screen and heating state; near-junction air temperature and RH; first-wet-point and comparison-surface temperatures; photographs; and where collected water went. Record whether the member was already wet when measured. Repeat after a correction in a comparable cold or rain event. A dry afternoon does not verify a fix for an overnight wet band.

Review the outcomes separately. A structural change may warm the member yet leave a greenhouse-wide humidity duty. A climate change may lower dew point yet leave rain entry or a blocked drainage path. Confirm structural integrity, intended water discharge, safe access and crop conditions with their respective owners. The useful result is a documented source, a bounded correction and a retest under similar conditions.
